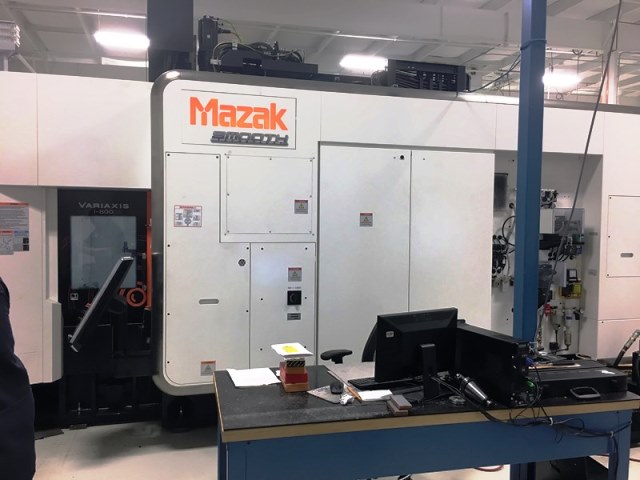

04 Apr MAZAK VARIAXIS i-800 5X 2APC
Type: Vertical Machining Center
Brand: Mazak
Model: VARIAXIS i-800 5X 2APC
Year: 2016
The newest Mazak 5-axis machining center designed for exceptional versatility. Equipped with a high-rigidity table supported on both sides for large, heavy workpieces.
Specifications:
| Specification | Details |
|---|---|
| Table Size | 31.5″ X 24.8″ |
| Number of Pallets | 2 |
| Max. Workpiece Load | 2205 LBS |
| Max. Workpiece Size | 39.37″ X 19.69″ |
| X – Axis Travel | 28.74″ |
| Y – Axis Travel | 33.46″ |
| Z – Axis Travel | 22.05″ |
| A – Axis Travel | -120 + 30 Degrees |
| C – Axis Travel | 360,000 Degrees |
| Rapids X, Y, Z | 1654 IPM |
| Rapid Traverse A – Axis | 18,000 Degrees / Min. |
| Cutting Feed Rates | 1654 IPM X, Y, Z / 984 IPM A, C |
| Spindle Nose | CAT 50 |
| Spindle Speed | 10,000 RPM |
| Tool Magazine | 80 ATC |
| Main Motor | 50/40/30 HP AC |
| Max. Spindle Torque | 258 FT/LBS |
| Machine Weight | 43,297 LBS |
Equipped With:
- Mazak Smooth X Control
- 2 Pallet Changer – 500mm Pallets
- 80 Tool Double Magazines
- Renishaw OMP 400 Strain Gage Probe System
- Renishaw OMP 60M/LP2 Deep Bore Probe System
- Renishaw CAPPS NC On-Machine Inspection Software Package (5 Axis)
- Renishaw CAPPS NC Offline Programming Package (5 Axis)
- Renishaw Artifact Software For Machine
- Scale Feedback System For X, Y, Z Axis
- Scale Feedback System For A, C Axis
- Hi-Pressure Coolant Thru Spindle – 213/1000 PSI
- Coolant Temperature Control System (Water Soluble)
- Workpiece Cleaning Coolant
- Manual Pulse Generator – Palm Size
- Work Setting Error Compensation
- Mayfran Chip Conveyor
- All Available Manuals
