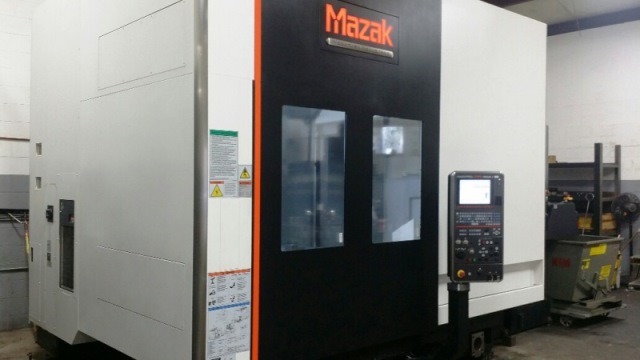

12 Apr MAZAK MEGATURN 1600 CNC VTL
Type: Lathes,Combination CNC
Brand: Mazak
Model: Megaturn 1600 CNC VTL
Year: 2013/2014
This used heavy duty cnc lathe excels in cutting of large, low-to-medium profile, tough-to-machine workpieces. We are glad to have The MEGA TURN 1600 CNC Vertical Turning Center as part of our used Mazak machines for sale because it’s well suited for a variety of industries including aerospace, construction, and energy. It’s great for heavy metal removal for materials such as stainless steel, titanium and other alloys. Operators can also access the machining area with ease due to the machine’s ergonomic design, which increases process efficiency.
SPECIFICATION:
| Chuck Size | 59″ |
| Maximum Swing | 64.96″ |
| Maximum Machining Diameter | 64.96″ |
| Distance Between Centers | 7.6″ to 43.23″ |
| Spindle Speed | 350 (MIN-1) |
| Number of Tools | 12 |
EQUIPPED WITH:
- Mazatrol Matrix Nexus 2 Control
- 12 Position Drum Turret
- Main Spindle Motor 60HP
- Spindle Speed 350 RPM
- 59″ (1500mm) 4-Jaw Independent Chuck
- SHOWA Mist Collector
- MAZAK Super Flow High Pressure 1000 PSI
- Prep Only for Renishaw RMP 40M / LP2 Radio Probe System
- Chip Conveyor, Side, Hinge
- All Available Tooling, Chucks, Jaws, Etc.
- All Available Manuals
- MFG 11/2013 – Installed 2014
