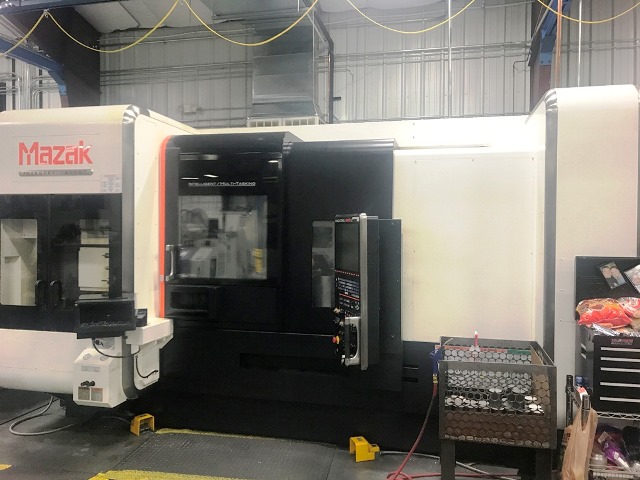

04 Apr MAZAK INTEGREX i-200ST
Type: 5 Axis Multitasking Machine
Brand: Mazak
Model: INTEGREX i-200ST CNC LATHE
Year: 2015
This used Mazak Integrex is part of the 5th Generation multi-tasking machine for DONE IN ONE processing. Featuring long strokes for large workpiece capacity, 5-axis simultaneous machining for complex workpieces, processing from raw material to finished workpiece in a single setup, and a high power spindle for heavy-duty cutting. This used Mazak Integrex is a great way to get great multitasking flexibility on a budget.
Specifications:
| Max. Swing | 25.9″ |
| Max. Machining Diameter (Upper Turret) | 25.9″ |
| Max. Machining Diameter (Lower Turret) | 16.54″ |
| Max. Machining Length | 59.8″ |
| Max. Bar Work Capacity (Main Spindle) | 2.5″ |
| Max. Bar Work Capacity (2nd Spindle) | N/A |
| X-Axis Travel | 24.21″ |
| Y-Axis Travel | 9.84″ |
| Z-Axis Travel | 62.4″ |
| X2-Axis Travel (Lower Turret) | 9.05″ |
| Z2-Axis Travel (Lower Turret) | 54.65″ |
| B-Axis Travel | 30 DEG – 210 DEG |
| Main Spindle Chuck Size | 10″ |
| Main Spindle Speed | 5000 RPM |
| Main Spindle Nose/Spindle Bore/Bar Cap | A2-8 / 2.99″ / 2.5″ |
| Main Spindle Bearing ID | 4.72″ Minimum |
| Main Spindle Precision | 0.0001 DEG |
| Second Spindle Chuck Size | 8″ |
| Second Spindle Speed | 5000 RPM |
| Second Spindle Travel (W-Axis) | 60.6″ |
| Second Spindle Nose/Bore | A2-6 / 2.99″ |
| Second Spindle Bearing ID | 4.72″ Minimum |
| Second Spindle Precision | 0.0001 DEG |
| Milling Spindle Type | Single Spindle Turret w/ATC |
| Milling Spindle Speed | 12000 RPM |
| Max. Milling Spindle Torque | 120 NM |
| Tool Shank Height | 1″ |
| Boring Bar Shank Diameter | 1.575″ |
| Min Milling Spindle Indexing Increment | 0.0001 DEG |
| Lower Turret Type | 9 Position Drum Turret |
| Number of Tools (Lower Turret) | 9 |
| Tool Shank Height (Lower Turret) | 1″ |
| Boring Bar Shank Diameter (Lower Turret) | 1.26″ |
| Turret Indexing Time | 0.14 SEC/1 STEP |
| Rapid Traverse Rate X-Axis | 1,969 IPM |
| Rapid Traverse Rate Y-Axis | 1,575 IPM |
| Rapid Traverse Rate Z-Axis | 1,969 IPM |
| Rapid Traverse Rate X2-Axis (Lower Turret) | 1,969 IPM |
| Rapid Traverse Rate Z2-Axis (Lower Turret) | 1,969 IPM |
| Rapid Traverse Rate W-Axis | 1,181 IPM |
| Tool Shank | CAPTO |
| Tool Storage Capacity | 72 Tools |
| Max. Tool Diameter/Length (From Gauge Line) | 3.54″ (When Adj. Pocket Empty) / 4.92″ / 15.75″ |
| Max. Tool Weight | 5.45 lbs |
| Tool Selection Method | Shortest Path |
| Machine Height | 107″ |
| Floor Space Requirement | 193.3″ X 110.2″ |
| Machine Weight | 35,596 lbs |
Equipped With:
- Mazatrol Matrix CNC Conversational Control
- Optional 60″ Bed Length
- Prep For 1000 PSI Super Flow (Upper Turret)
- MAZAK Super Flow V8M Variable High Pressure Coolant Unit
- Quick Coolant Stop System
- Thru Coolant Upper Turret
- Automatic Parts Catcher w/Ejector (2.5″ Dia X 4.7″ L X 5.5 Lb)
- 2nd Spindle C-Axis With C1-C20.0001 DEG Increments
- F Tool Radius Compensation
- 72 Tool Capto Magazine
- Work Setting Error Compensation G54.4
- Synchronous Function
- 5-Axis Machining Package (K7MAZ-MX-103)
- MT Connect Adapter Software
- Chuck Air Blast For First Spindle
- 10″ Thru-Hole Chuck B210A615/4200 RPM (1st Spindle)
- Max Program Size 8MB
- Preparation For Multi And Flash Tool System
- Work Measuring System RMP60 Or RMP600
- Mayfran CONSEP Chip Conveyor – 60″ Side
- Relocation Device
- All Available Manuals
