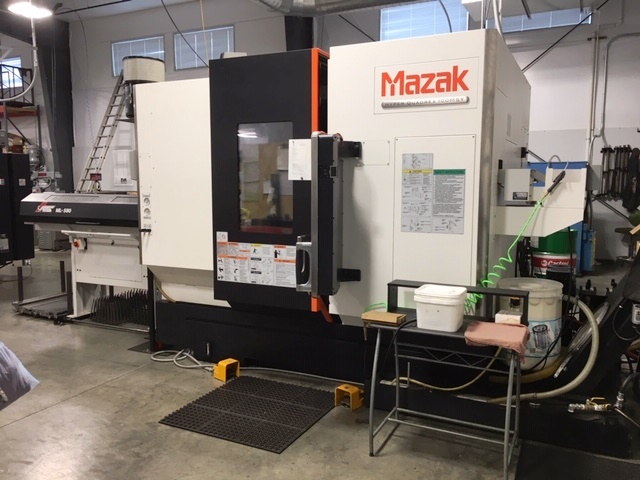

04 Apr MAZAK HQR-100MSY
Type: Combination CNC Lathe
Brand: Mazak
Model: Mazak HCN 6800-II/ 4 AXIS
Year: 2015
HC Series machines feature several new and innovative technologies to help job shops boost speed, performance, and precision in a wide variety of metalworking applications.
Specifications:
| Max. Swing | 12.6″ |
| Max. Machining Diameter | 11.625″ |
| Distance Between Chuck Jaw Faces (Both Spindles) | 24.375″ |
| Spindle Bore | 2.4″ |
| Bar Work Capacity | 2″ |
| Main Spindle Speed | 6,000 RPM |
| Second Spindle Speed | 6,000 RPM |
| Second Headstock Stroke (W-Axis) | 24.5″ |
| Second Headstock Positioning Speed | 1181 IPM |
| Rapid Traverse Rate: C-Axis | 555 RPM |
| Turret Type | 12-Position Drum Turret (VDI) |
| Turning Tool Shank | 3/4″ |
| Boring Bar Shank Diameter | 1-1/4″ |
| Turret Indexing Time | 0.2 S / 1 Step |
| Rotary Tool Spindle Speed | 6,000 RPM |
| Milling Capacity | Ø0.63″, Endmill |
| Main Spindle (30 Min. Rating) | 11 KW (15 HP) |
| Main Spindle (Cont. Rating) | 7.5 KW (10 HP) |
| Second Spindle (30 Min. Rating) | 11 KW (15 HP) |
| Rotary Tool Spindle (10 Min. Rating) | 5.5 KW (7.5 HP) |
| Height | 95″ |
| Floor Space Requirement | 112.68″ × 90.16″ |
| Machine Weight | 19,930 lbs |
Equipped With:
- Mazatrol Matrix Control
- Hi-Pressure Coolant 213 PSI w/Temp Control
- Workpiece Unloader And Conveyor 2.56 Dia X 7.09 X 6.6Lbs
- 6″ Chuck BB-06 Only For First Spindle 2″ Dia Thru
- Mayfran Chip Conveyor Side Disposal
- Royal Products A2-5 Acculength S20 Collet Chuck
- ATS Systems ML3-580S Servo Barfeed
