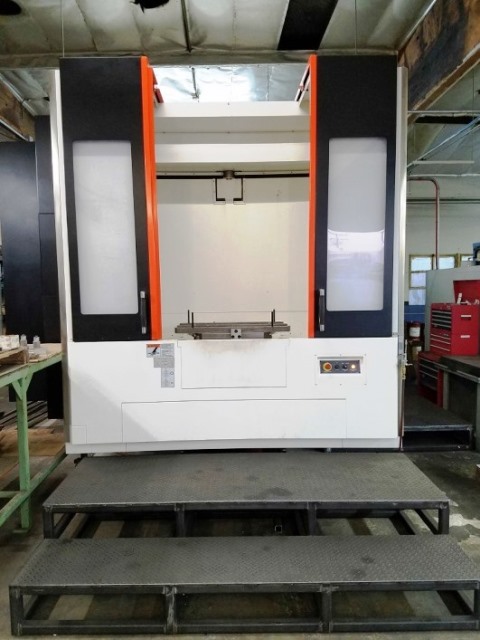

04 Apr MAZAK HCN 6800-II/ 4 AXIS
Type: Horizontal Machining Center
Brand: Mazak
Model: Mazak HCN 6800-II/ 4 AXIS
Year: 2015
HC Series machines feature several new and innovative technologies to help job shops boost speed, performance, and precision in a wide variety of metalworking applications.
Specifications:
| Table Size L x W (in.) | 24.8″ x 24.8″ |
| Max. Workpiece Weight (lbs) | 3,307 |
| Pallet Changer No. of Pallets | 2 |
| Index Table Index Degrees | Full 4th |
| Taper | CAT #50 |
| Top RPM | 10,000 |
| Horse Power (30 Min Rating) | 50 |
| # Speed Ranges | 2 |
| Number of Tools | 80 ATC |
| Tool Change Time C-to-C (Sec) | 4.2 |
| Max. Tool Length (in.) | 24.8″ |
| Max. Tool Diameter (in.) | 9.84″ (Max Tool Dia Upgrade 12″) |
| Max. Tool Weight | 66 lbs |
| Number of Axes | 4 |
| X Axis | 41.340″ |
| Y Axis | 35.430″ |
| Z Axis | 38.580″ |
| Max Feed and Rapid Rates X, Y, Z | 2,362 IPM |
| Machine Dimensions | 248″ x 130″ x 134″ |
| Machine Weight (lbs) | 41,800 |
Equipped With:
- Matrix Nexus 2 Control
- High Smoothing Control (Requires MAZACC-3D)
- 80 Tool Chain Mag CAT50
- Additional Work Light
- Renishaw OMP60M Optical Probe Prep
- NC Rotary Table
- Dynamic Compensation 2.1 (Only NC-Table)
- MAZACC-3D High Speed Software Package (G61.1 & G05P2)
- Shape Comp For Rotary Axis (Requires NC Rotary Table)
- Coolant Through Spindle 12 GPM 1000 PSI Application
- MAZAK Super Flow V8M Variable High Pressure Coolant Unit
- Chip Conveyor
- Full Set Of Paper Manuals
