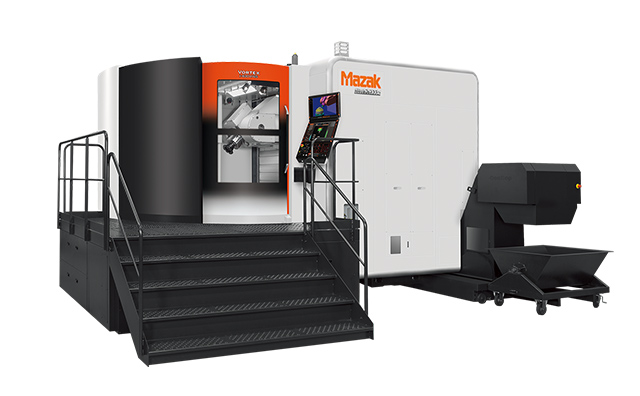

This vertical machining center features 24.80″ to 31.5″ pallets and is built for high-precision, high-volume production in aerospace and heavy construction. With a tilting spindle, rotary table, and simultaneous 5-axis capability, it handles large, complex parts from titanium, aluminum, and steel. A two-pallet changer supports unattended operation and off-cycle part setup, enhancing productivity and shop floor efficiency.
| Model | Vortex i-630V/6, Vortex i-630V/6S |
|---|---|
| Pallet size | 24.8 |
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Max. workpiece size | 41.34 × 39.37, 49.21 × 55.12 |
$1.00
The Vortex i-630V is a high-performance vertical CNC system designed for precision and stability in large-part CNC machining. It supports workpieces up to 1,050 mm in diameter and 1,000 mm in height, making it suitable for heavy and complex components. Its rigid structure and advanced spindle options increase efficiency across a wide range of materials, from aluminum to titanium.
The i-630V comes standard with a 10,000 rpm spindle for high-speed CNC machining. Mazak also offers optional spindles, including a 5,000 rpm high-torque version for tough materials and a 15,000 rpm model for fast cutting of non-ferrous metals. Linear roller guides on all axes provide smooth and precise motion under heavy loads. This ensures consistent reliability during demanding milling operations.
The Vortex machining center specs support strong throughput and flexible operation. For example, X, Y, and Z travels measure 1,425 mm, 1,050 mm, and 1,050 mm, and rapid traverse rates reach 52 m/min. In addition, the B-axis tilts from -30° to +120°, while the C-axis rotates a full 360°. These capabilities allow efficient machining of complex multi-surface geometries. It also features an automatic tool changer with 43-tool capacity to support continuous cutting and reduces downtime. As a result, this Mazak machining center is a solid solution for job shops requiring flexible, high-precision machining of large parts in a space-efficient vertical CNC system.
| Model | Vortex i-630V/6, Vortex i-630V/6S |
|---|---|
| Pallet size | 24.8 |
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Max. workpiece size | 41.34 × 39.37, 49.21 × 55.12 |
| Table | Max. workpiece size | Φ41.34″ × 39.37″ |
|---|---|---|
| Max. load (evenly distributed) | 3307 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 260 ft-lbs</td> | |
| Max. torque (cont. rating) | 183 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity<!–th> | 43 |
| Max. tool diameter | Φ5 “ | |
| Max. tool diameter (without adjacent tool) | Φ10 “ | |
| Max. tool length (from gauge line) | 20 “ | |
| Max. tool weight | 66 lbs> | |
| Travel> | X-axis | 56 “ |
| Y-axis | 41 “ | |
| Z-axis | 41 “ | |
| B-axis | – 30° to + 120° | |
| >Rapid traverse rate | X-axis | |
| Y-axis | 2047 IPM | |
| Z-axis</th> | 2047 IPM | |
| Machine size | Machine width × length (MAZATROL SmoothAi) | 200 ” × 302 “ |
| Machine heighth> | 148 “ | |
| Machine weight | 71980 lbs |
| Table | Max. workpiece size | |
|---|---|---|
| Max. load (evenly distributed) | 3307 lbs | |
| Spindle | Tool shank | |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 260 ft-lbs | |
| Max. torque (cont. rating) | 183 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 43 |
| Max. tool diameter | Φ5 “ | |
| Max. tool diameter (without adjacent tool) | Φ10 “ | |
| Max. tool length (from gauge line) | 20 “ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 56 “ |
| Y-axis | 41 “ | |
| Z-axis | 41 “ | |
| B-axis | – 30° to + 120° | |
| Rapid traverse rate | X-axis | 2047 IPM |
| Y-axis | 2047 IPM | |
| Z-axis | 2047 IPM | |
| Machine size | Machine width × length (MAZATROL SmoothAi) | 214 ” × 300 “ |
| Machine height | 148 “ | |
| Machine weight | 68011 lbs |
