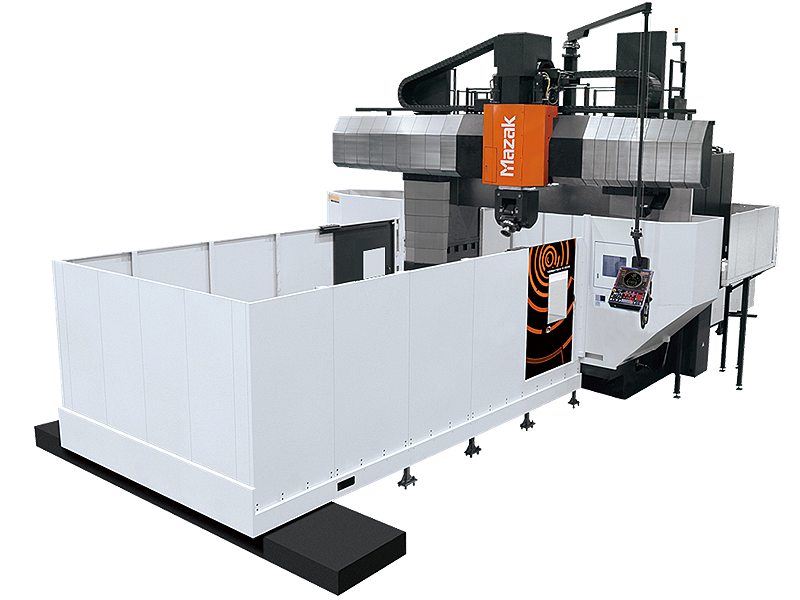

The Mazak Versatech V-100N is a high-performance vertical double-column machining center designed for large, complex parts. Its dual-column structure and expansive travels maintain accuracy during long production cycles, making it a reliable solution for aerospace, energy, and heavy equipment manufacturers.
Versatech V-100N Features:
| Model | Versatech V-100N/ 160, Versatech V-100N/ 200, Versatech V-100N/ 240 |
|---|---|
| Table size | 82.68 × 196.85, 82.68 × 118.11, 82.68 × 157.48 |
| Tool shank | 50 |
| Max. spindle speed | 8000 |
| Max. workpiece size | 118.11 × 108.27 × 68.9, 157.48 × 108.27 × 68.9, 196.85 × 108.27 × 68.9 |
$1.00
The Versatech V-100N’s rigid dual-column design minimizes vibration and thermal distortion, ensuring consistent accuracy during long machining cycles. In addition, its large table and extended axis travel make it ideal for oversized components, delivering the stability required for tight-tolerance work. This level of precision helps contract manufacturers maintain quality standards in demanding, heavy-duty applications.
The Versatech V-100N performs automated 5-axis machining to finish multiple surfaces in a single setup. As a result, it reduces repositioning, shortens cycle times, and improves dimensional accuracy. This machining center also features a Mazatrol SmoothAi CNC control system, which provides AI-driven tool path optimization, digital twin simulation, and real-time diagnostics, giving operators better process control and higher throughput.
A pallet changer system allows parts to be loaded and unloaded without disputing the machining process. As a result, it maximizes spindle utilization and minimizes idle time. When paired with automation solutions such as the pallet changer, the Versatech V-100N supports high-mix, low-volume workflows and helps manufacturers meet strict production schedules with fewer interruptions.
| Model | Versatech V-100N/ 160, Versatech V-100N/ 200, Versatech V-100N/ 240 |
|---|---|
| Table size | 82.68 × 196.85, 82.68 × 118.11, 82.68 × 157.48 |
| Tool shank | 50 |
| Max. spindle speed | 8000 |
| Max. workpiece size | 118.11 × 108.27 × 68.9, 157.48 × 108.27 × 68.9, 196.85 × 108.27 × 68.9 |
Versatech V-100N/160
| Table | Table size | 82.68″ × 118.11″ |
|---|---|---|
| Max. load (evenly distributed) | 94797 lbs | |
| Spindle | Max. spindle speed* | 8000 rpm |
| Max. torque (40% ED) | 286 ft-lbs | |
| Max. torque (cont. rating) | 286 ft-lbs | |
| Spindle motor (40% ED) | 40 kW (54 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ5 “ | |
| Max. tool diameter (without adjacent tool) | Φ8 “ | |
| Max. tool length (from gauge line) | 20 “ | |
| Maximum tool weight | 55 lbs | |
| Stroke | X-axis | 157 “ |
| Y-axis | 142 “ | |
| Z-axis | 28 “ | |
| B-axis | -100° – +100° | |
| C-axis | ±180° | |
| Distance from table top to spindle nose (B-axis : 0°) | 0 ” to 74 “ | |
| Rapid traverse rate | X-axis | 1181 IPM |
| Y-axis | 1181 IPM | |
| Z-axis | 1181 IPM | |
| Machine size | Machine width × length (MAZATROL SmoothX) | 312 ” × 414 “ |
| Machine height | 262 “ | |
| Machine weight | 131616 lbs |
* Maximum spindle speed is selectable from 8000 rpm and 12000 rpm
Versatech V-100N/200
| Table | Table size | 82.68″ × 157.48″ |
|---|---|---|
| Max. load (evenly distributed) | 94797 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed* | 8000 rpm | |
| Max. torque (40% ED) | 286 ft-lbs | |
| Max. torque (cont. rating) | 286 ft-lbs | |
| Spindle motor (40% ED) | 40 kW (54 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ5 “ | |
| Max. tool diameter (without adjacent tool) | Φ8 “ | |
| Max. tool length (from gauge line) | 20 “ | |
| Maximum tool weight | 55 lbs | |
| Stroke | X-axis | 197 “ |
| Y-axis | 142 “ | |
| Z-axis | 28 “ | |
| B-axis | -100° – +100° | |
| C-axis | ±180° | |
| Distance from table top to spindle nose (B-axis : 0°) | 0 ” to 74 “ | |
| Rapid traverse rate | X-axis | 1181 IPM |
| Y-axis | 1181 IPM | |
| Z-axis | 1181 IPM | |
| Machine size | Machine width × length (MAZATROL SmoothX) | 296 ” × 513 “ |
| Machine height | 262 “ | |
| Machine weight | 143742 lbs |
* Maximum spindle speed is selectable from 8000 rpm and 12000 rpm
Versatech V-100N/ 240
| Table | Table size | 82.68″ × 196.85″ |
|---|---|---|
| Max. load (evenly distributed) | 94797 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed* | 8000 rpm | |
| Max. torque (40% ED) | 286 ft-lbs | |
| Max. torque (cont. rating) | 286 ft-lbs | |
| Spindle motor (40% ED) | 40 kW (54 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ5 “ | |
| Max. tool diameter (without adjacent tool) | Φ8 “ | |
| Max. tool length (from gauge line) | 20 “ | |
| Maximum tool weight | 55 lbs | |
| Stroke | X-axis | 236 “ |
| Y-axis | 142 “ | |
| Z-axis | 28 “ | |
| B-axis | -100° – +100° | |
| C-axis | ±180° | |
| Distance from table top to spindle nose (B-axis : 0°) | 0 ” to 74 “ | |
| Rapid traverse rate | X-axis | 1181 IPM |
| Y-axis | 1181 IPM | |
| Z-axis | 1181 IPM | |
| Machine size | Machine width × length (MAZATROL SmoothX) | 296 ” × 572 “ |
| Machine height | 262 “ | |
| Machine weight | 156087 lbs |
* Maximum spindle speed is selectable from 8000 rpm and 12000 rpm
