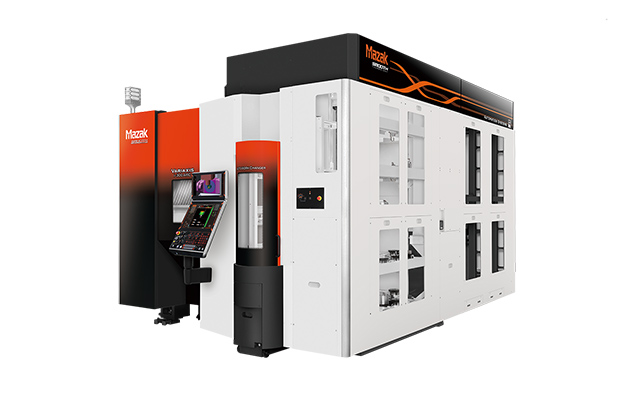

The Mazak Variaxis i-300 AWC is a compact, high-performance 5-axis vertical machining center designed for precision multi-surface CNC milling and efficient automated part handling. With intelligent automation and advanced control, it’s built to excel in high-mix, low-volume production environments.
| Model | VARIAXIS i-300 AWC |
|---|---|
| Tool shank | 40 |
| Max. spindle speed | 12000 |
| Max. workpiece size | 13.78 × 12.4 |
$1.00
Mazak designed the Variaxis i-300 AWC for complex, high-mix part production in a compact, automation-ready platform. The vertical machining center is engineered for precision and flexibility. For example, it features a fully integrated automatic work changer CNC system t0 maximize machine utilization and minimize manual intervention. In addition, it can perform high-speed multi-surface CNC milling with complex surfaces and tight tolerances. These features make it an ideal manufacturing solution for aerospace, medical, and advanced job shop environments.
As a compact CNC machining center, the Variaxis i-300 AWC delivers powerful performance in a space-saving footprint. For example, its rotary/tilt table and high-speed spindle support simultaneous 5-axis operations to machine complex parts in one setup. Powered by Mazak’s SmoothX CNC control, the system delivers intuitive programming, rapid processing, and advanced motion control for consistent accuracy and repeatability. In addition, the integrated automatic work changer CNC function significantly boosts productivity with unattended, multi-job operation. This machining center also features intelligent scheduling, which can seamlessly handle a variety of workpieces across different materials. This capability makes it ideal for high-mix, low-volume environments, with the scalability needed for mid-volume manufacturing.
Mazak optimized the Variaxis i-300 AWC for high-speed multi-surface CNC milling across a broad range of part geometries. In addition, its compact design supports everything from prototyping to mid-volume manufacturing with reduced setup times, improved part consistency, and superior tolerance control. This 5-axis vertical machining center, is ideal for manufacturers aiming to modernize their operations with automation and precision-focused performance.
| Model | VARIAXIS i-300 AWC |
|---|---|
| Tool shank | 40 |
| Max. spindle speed | 12000 |
| Max. workpiece size | 13.78 × 12.4 |
| Table | Max. workpiece size | Φ350 mm × 315 mm |
|---|---|---|
| Work holder diameter | Φ130 mm | |
| Max. load | 65 kg | |
| Work stocker | 32 | |
| Spindle | Tool shank | BT40 |
| Max. spindle speed | 12000 min-1 | |
| Max. torque (40% ED) | 71.6 N･m | |
| Max. torque (cont. rating) | 52.5 N･m | |
| Spindle motor (40% ED) | 22 kW (30 HP) | |
| Spindle motor (cont. rating) | 15 kW (20 HP) | |
| Automatic tool changer | Tool storage capacity | 145 |
| Max. tool diameter | Φ90 mm | |
| Max. tool diameter (without adjacent tool) | Φ130 mm | |
| Max. tool length (from gauge line) | 350 mm | |
| Max. tool weight | 8 kg | |
| Travel | X-axis | 350 mm |
| Y-axis | 550 mm | |
| Z-axis | 510 mm | |
| A-axis | -120° – +30° | |
| Distance from table top to spindle nose (table horizontal) | 110 mm to 620 mm | |
| Rapid traverse rate | X-axis | 60000 mm/min |
| Y-axis | 60000 mm/min | |
| Z-axis | 56000 mm/min | |
| Machine size | Machine width × length (MAZATROL SmoothAi) | 3430 mm × 3950 mm |
| Machine height | 2968 mm | |
| Machine weight | 13000 kg |
