This CNC machine is engineered to optimize production with features that significantly reduce cycle times. Its dual-supported tilting table and fast rapid traverse rates ensure swift, precise movements, while the standard 30-tool changer (with options for 60, 90, and 120 tools) streamlines tool selection and reduces setup times. Whether machinists are working with complex components or high-volume production runs, this machining center delivers consistent, repeatable performance.
Variaxis C-600 Features:
| Model | Variaxis C-600 |
|---|---|
| Pallet size | 23.62 × 19.69 |
| Tool shank | 40 |
| Max. spindle speed | 12000 |
| Max. workpiece size | 28.74 × 17.72 |
$1.00

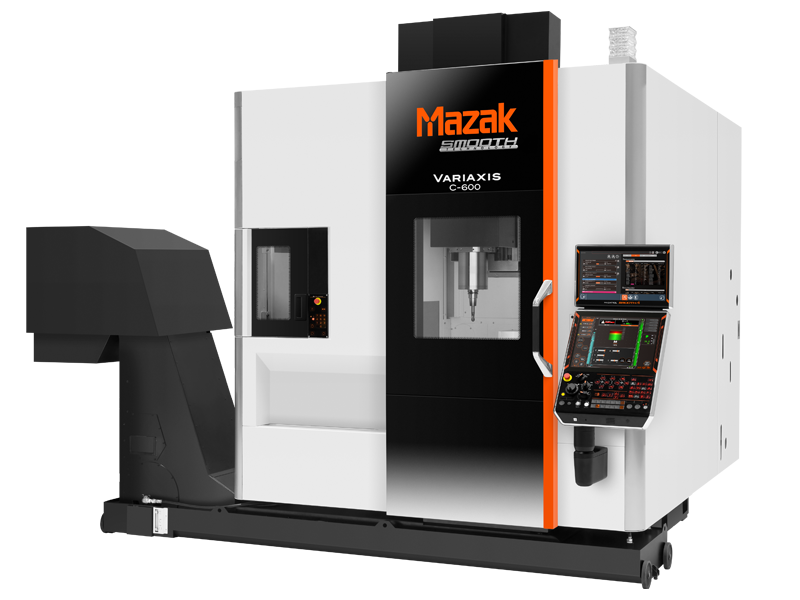

The Mazak Variaxis C-600 is a high-performance 5-axis vertical machining center built for precision, efficiency, and adaptability. Its compact footprint fits space-conscious shops, while a rigid structure and thermal stability ensure reliable, high-speed operation. Designed for multi-surface CNC milling, it handles a wide range of part geometries, making it ideal for aerospace, automotive, and energy applications.
The Variaxis C-600 supports full simultaneous 5-axis operation, completing complex parts in a single setup. This reduces the need for multiple fixtures, shortens cycle times, and enhances part accuracy. In addition, efficient chip evacuation and minimized thermal distortion maintain repeatable performance, even in high-mix production environments.
Powered by SmoothAi CNC control, the Variaxis C-600 optimizes cutting parameters in real time. Features such as Smooth Machining Configuration (SMC) and Ai Thermal Shield compensate for thermal displacement and streamline programming. The result is a compact 5-axis solution that delivers reliable output and supports scalable, high-precision production.
| Model | Variaxis C-600 |
|---|---|
| Pallet size | 23.62 × 19.69 |
| Tool shank | 40 |
| Max. spindle speed | 12000 |
| Max. workpiece size | 28.74 × 17.72 |
| Table | Table size | Φ600 mm × 500 mm |
|---|---|---|
| Max. workpiece size | Φ730 mm × 450 mm | |
| Max. load (evenly distributed) | 500 kg | |
| Spindle | Tool shank | BT40 |
| Max. spindle speed | 12000 min-1 | |
| Max. torque (40% ED) | 70 Nï½¥m | |
| Max. torque (cont. rating) | 57.3 Nï½¥m | |
| Spindle motor (40% ED) | 11 kW (15 HP) | |
| Spindle motor (cont. rating) | 11 kW (15 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ80 mm | |
| Max. tool diameter (without adjacent tool) | Φ130 mm | |
| Max. tool length (from gauge line) | 300 mm | |
| Max. tool weight | 8 kg | |
| Travel | X-axis | 650 mm |
| Y-axis | 550 mm | |
| Z-axis | 530 mm | |
| B-axis | -30° – +120° | |
| Distance from table top to spindle nose (table horizontal) | 50 mm to 580 mm | |
| Rapid traverse rate | X-axis | 42000 mm/min |
| Y-axis | 42000 mm/min | |
| Z-axis | 42000 mm/min | |
| Machine size | Machine width × length (MAZATROL SmoothAi) | 2350 mm × 2962 mm |
| Machine height | 3039 mm | |
| Machine weight | 10000 kg |
