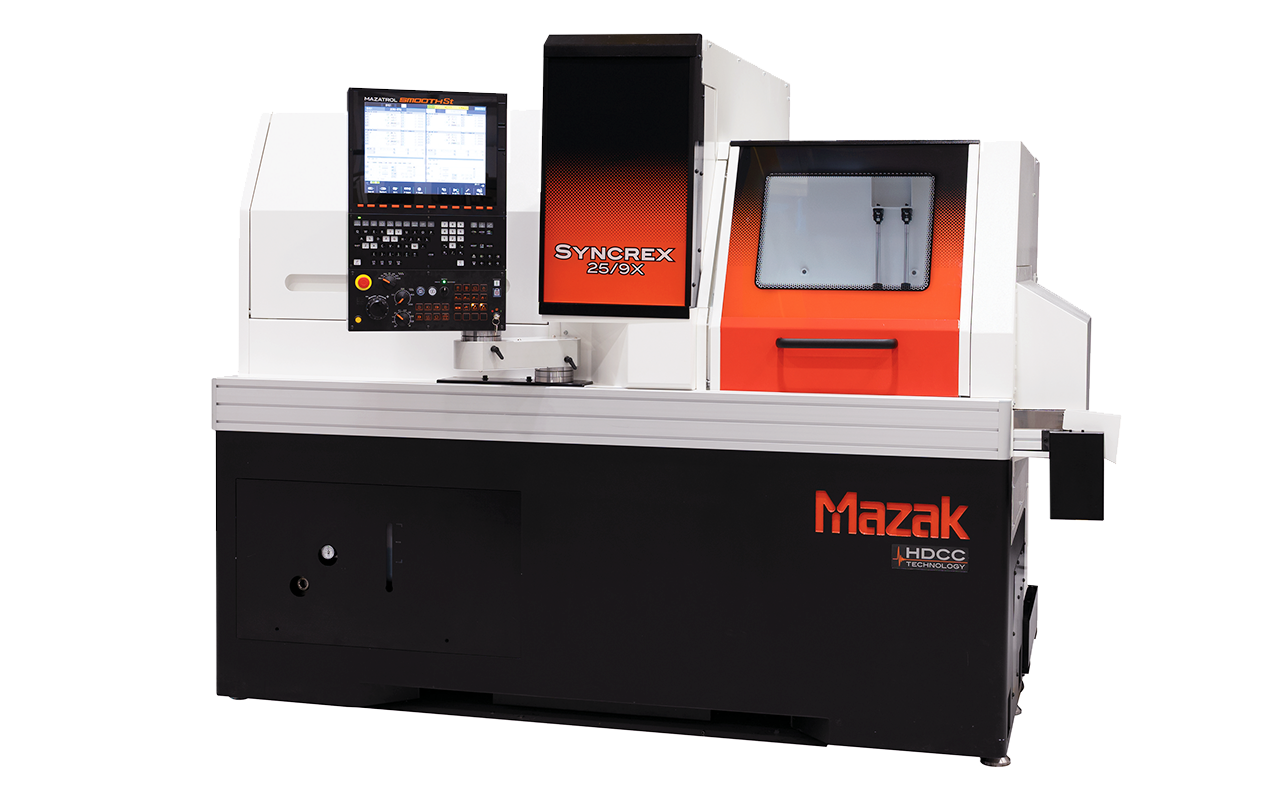

Mazak Syncrex 25/9X compact CNC Swiss lathe for precision Swiss-style turning with Smooth CNC control and bar feeder integration.

Syncrex 25/9X

The Mazak Syncrex 25/9X is a compact CNC Swiss lathe designed for precision, efficiency, and flexibility in demanding industries such as medical, aerospace, and electronics. Built on proven Mazak Swiss style engineering, it provides stable, high-accuracy performance for slender and complex parts. With advanced multi-axis capability, seamless bar feeder integration, and the MAZATROL SmoothSt CNC, the 25/9X delivers true Swiss-style turning with the productivity and reliability required in modern manufacturing.



Syncrex 25/9X Features:

  • Swiss-style turning with simultaneous machining across both spindles for complex part geometries
  • Compact CNC Swiss lathe design optimized for space efficiency and precision machining
  • 5-axis capability with guide bushing system to minimize deflection and maintain stability
  • Integration with bar feeders for extended, unattended production and higher throughput
  • MAZATROL SmoothSt CNC control with intuitive touchscreen interface for faster programming and setup
  • Engineered for tight-tolerance machining in industries requiring high accuracy and repeatability
Model

Syncrex 25/9X
Max Workpiece Diameter

1.0"
Max Machining Length

8.07"

$1.00

SKU N/A Categories: , Brand:
Description
Precision Swiss-Style Turning with the Syncrex 25/9X

The Mazak Syncrex 25/9X delivers high accuracy and speed in a compact footprint. As a compact CNC Swiss lathe, it supports industries a variety of industries by providing tight-tolerance machining on slender, complex parts. Designed with proven Mazak Swiss style engineering, it also ensures precision, stability, and reliability across both short and extended production runs.



Compact CNC Swiss Lathe for Space and Productivity

The Syncrex 25/9X combines small-machine efficiency with advanced performance. Its 5-axis capability and guide bushing system minimize part deflection while supporting longer cycle times. As a compact CNC Swiss lathe, it’s built to optimize shop floor space while delivering the flexibility and output manufacturers need for both high-mix and dedicated production.



Swiss-Style Turning with Intelligent Control

The Mazak Syncrex 25/9X provides true Swiss-style turning for complex geometries. In addition, it integrates seamlessly with bar feeders to enable continuous, unattended operation and greater productivity. Powered by the MAZATROL SmoothSt CNC, operators gain faster programming, intuitive control, and the ability to adapt quickly to new part designs. For manufacturers, this Mazak Swiss style solution delivers dependable precision and efficiency in demanding production environments.

Additional Information
Model

Syncrex 25/9X
Max Workpiece Diameter

1.0"
Max Machining Length

8.07"
Syncrex 25/9X
Capacity Max. machining diameter Φ1″
Max. machining length GB (one chucking) 8.07″
Main Spindle Max. spindle speed 10000 rpm
Power requirement (40% ED) 5.5 kW (8 HP)
Second Spindle Max. spindle speed 10000 rpm
Power requirement (40% ED) 5.5 kW (8 HP)
Turret Number of tools 36
OD 8
Cross live tool 4
Back working 8
End working tools 2
Boring bar holder (Main / Sub) 4 / 4
B-axis Tool* (Main / Sub) 3 / 3
Rapid traverse rate X1-axis 1377 IPM
Y1-axis 1377 IPM
Z1-axis 1377 IPM
X2-axis 1377 IPM
Y2-axis 1377 IPM
Z2-axis 1377 IPM
Machine size Width × Depth (MAZATROL SmoothStX) 48.23″ × 88.58″
Height 66.93″
Weight 7850 lbs

*B-axis Contouring : 9X Model only
