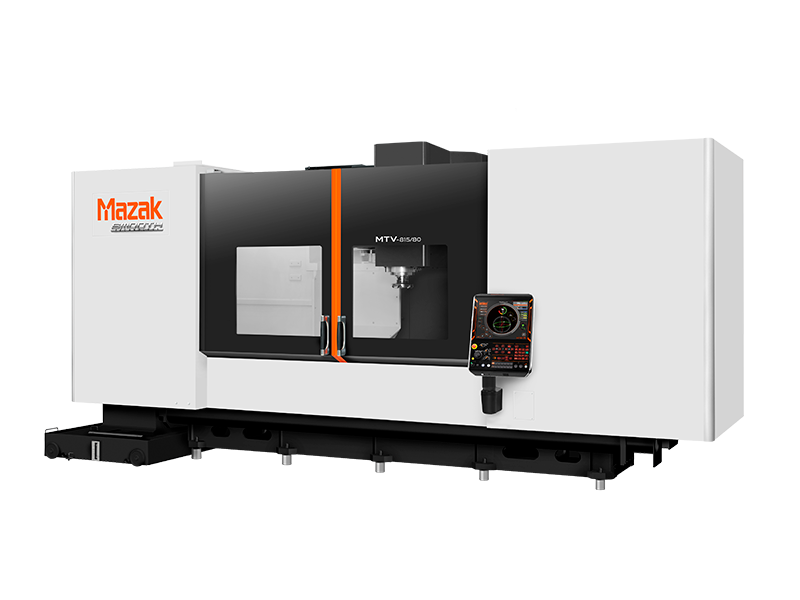

Mazak MTV-815 vertical CNC system with column travelling design, high-torque spindle, and automation-ready configuration for high-speed machining solutions.

MTV-815

The Mazak MTV-815 vertical machining center delivers power, precision, and speed for today’s most demanding machining environments. Its rigid construction, responsive controls, and automation-ready design make it the perfect solution for shops looking to boost throughput and maintain consistent quality.



MTV-815 Features:

  • High efficiency, high-horsepower 50-taper spindle
  • Solid, column-feed machine design ensures cutting stability
  • Fast rapid traverse speeds improve productivity
  • Wide machining area for easy and safe operation
  • Standard 30-tool storage capacity, 60-tool optional
  • Long X-axis travels
Model

MTV-815/80, MTV-815/120
Tool shank

50
Max. spindle speed

6000
Table size

88.19 × 31.89, 127.56 × 31.89

$1.00

SKU N/A Categories: , Brand:
Description
MTV-815 Vertical CNC System for High-Speed, Heavy-Duty Machining

The MTV-815 is a powerful Mazak Vertical CNC system, engineered for manufacturers that need high speed machining solutions. Featuring durability and seamless automation, it combines stability, precision, and flexibility in demanding production environments.



Column Traveling Design for Stability

The MTV-815 features a column traveling design that maintains accuracy across long components while reducing thermal displacement. In addition, this architecture improves rigidity, ensures consistent machining, and provides better access for integration with automation systems. This advanced CNC machine also adapts easily to smart factory workflows with automation setups.



High-Torque Spindle for Versatile Machining

Equipped with a powerful high-torque spindle, the MTV-815 delivers strong cutting performance on a wide range of materials. For example, it supports aggressive roughing on castings and precise finishing on complex parts, making it one of the most versatile high-speed machining solutions in its class. With broad torque and rpm ranges, it also provides flexibility for diverse part geometries and production requirements.



Automation-Ready Vertical CNC System

The MTV-815 is designed for efficiency, power, and precision. In addition, it integrates seamlessly with robotic loaders, pallet changers, and other automation technologies. This makes it an ideal CNC machine with automation for high-mix, low-volume production. The machine’s large work envelope and responsive control system also minimize downtime, improve throughput, and ensure repeatable quality in every cycle.

Additional Information
Model

MTV-815/80, MTV-815/120
Tool shank

50
Max. spindle speed

6000
Table size

88.19 × 31.89, 127.56 × 31.89
Mtv-815/80
Table Table size 88.19″ × 31.89″
Max. loading weight(equal distribution) 6614 lbs
Spindle Tool shank BT50
Max. spindle speed 6000 rpm
Max. torque (40% ED) 560 ft-lbs
Max. torque (cont. rating) 454 ft-lbs
Spindle motor (40% ED) 18.5 kW (25 HP)
Spindle motor (cont. rating) 15 kW (20 HP)
Automatic tool changer Tool storage capacity 30
Max. tool diameter Φ4.92″
Max. tool diameter (without adjacent) Φ10.24″
Max. tool length (from gauge line) 15.75″
Max. tool weight 44 lbs
Travel X-axis 80″
Y-axis 31.89″
Z-axis 29.53″
Distance from table top face to spindle end 7.87″ to 37.4″
Rapid traverse rate X-axis 945 IPM
Y-axis 945 IPM
Z-axis 709 IPM
Machine dimensions Width x Length (MAZATROL SmoothG) 223.82″ × 173.07″
Height 123.74″
Machine weight 30864 lbs
Mtv-815/120
Table Table size 127.56″ × 31.89″
Max. loading weight(equal distribution) 6614 lbs
Spindle Tool shank BT50
Max. spindle speed 6000 rpm
Max. torque (40% ED) 560 ft-lbs
Max. torque (cont. rating) 454 ft-lbs
Spindle motor (40% ED) 18.5 kW (25 HP)
Spindle motor (cont. rating) 15 kW (20 HP)
Automatic tool changer Tool storage capacity 30
Max. tool diameter Φ4.92″
Max. tool diameter (without adjacent) Φ10.24″
Max. tool length (from gauge line) 15.75″
Max. tool weight 44 lbs
Travel X-axis 120″
Y-axis 31.89″
Z-axis 29.53″
Distance from table top face to spindle end 7.87″ to 37.4″
Rapid traverse rate X-axis 945 IPM
Y-axis 945 IPM
Z-axis 709 IPM
Machine dimensions Width x Length (MAZATROL SmoothG) 306.1″ × 173.07″
Height 123.74″
Machine weight 30864 lbs
