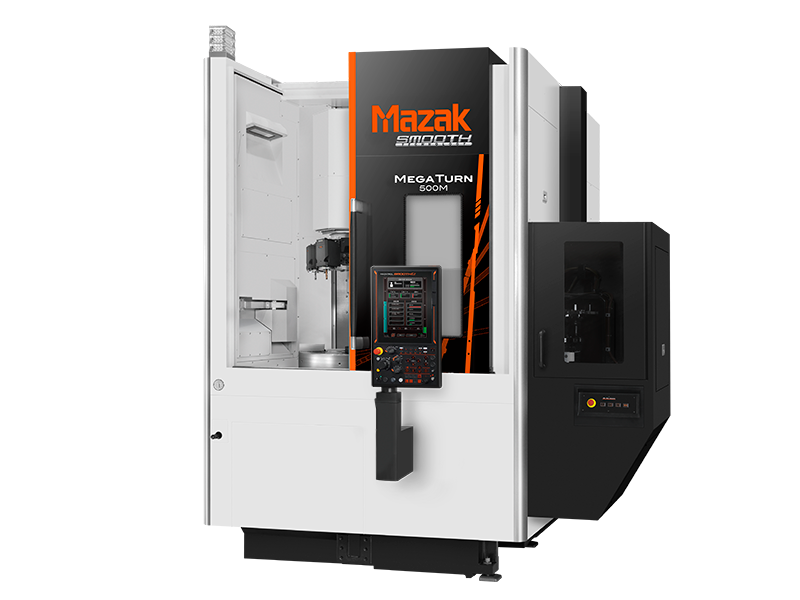

The Mazak Mega Turn 500M is a vertical heavy-duty CNC lathe designed for precision, power, and reliability. As a versatile Mazak machining center, it combines rigid construction, Smooth CNC control, and advanced tooling flexibility to deliver consistent high-precision CNC turning across demanding manufacturing environments.
500M Features:
| Model | Mega Turn 500M, Mega Turn 500MS |
|---|---|
| Chuck Size | |
| Max Machining Diameter | 19.69 |
| Max. machining height | 18.19 |
$1.00
The Mega Turn 500M is a heavy-duty CNC lathe built for durability, torque, and accuracy in demanding manufacturing environments. As a versatile Mazak machining center, it combines rigid construction with intelligent controls to deliver reliable performance across aerospace, energy, and contract manufacturing applications.
Engineered for high-precision CNC turning, the Mega Turn 500M uses a high-torque spindle to provide strong cutting force and speed. In addition, it handles both roughing and fine finishing in a single setup while maintaining excellent surface quality. It also has intelligent thermal compensation to ensure dimensional stability during long runs to support accurate results in every cycle.
As a tooling CNC lathe, the Mega Turn 500M offers a robust tool turret designed for diverse cutting tools and complex setups. This flexibility reduces setup time, enables quick tool changes, and increases throughput. In addition, with its reliable chip control and load-handling capability, it supports efficient, repeatable machining while extending tool life.
The Mega Turn 500M Smooth CNC Control simplifies programming, accelerates cycle times, and improves process monitoring. In addition, the intuitive interface supports advanced simulation and multi-part setups, helping manufacturers optimize workflow while maintaining precision in fast-paced production environments.
| Model | Mega Turn 500M, Mega Turn 500MS |
|---|---|
| Chuck Size | |
| Max Machining Diameter | 19.69 |
| Max. machining height | 18.19 |
| Capacity | Max. machining diameter | Φ20 “ |
|---|---|---|
| Max. loading weight | 1102 lbs | |
| Spindle | Max. spindle speed | 3000 rpm |
| Max. torque (15%ED) | 596 ft-lbs | |
| Spindle motor (40%ED) | 26 kW (35 HP) | |
| Spindle motor (cont. rating) | 22 kW (30 HP) | |
| Turret | Tool storage capacity | 12 |
| Tool shank height | 1 “ | |
| Boring bar shank diameter | Φ2 “ | |
| Rotary tool spindle | Max. spindle speed | 4000 rpm |
| Max. torque (10%ED) | 70 ft-lbs | |
| Spindle motor (10%ED) | 7.5 kW (10 HP) | |
| Spindle motor (cont. rating) | 5.5 kW (7 HP) | |
| Travel | X-axis | 14 “ |
| Z- axis | 20 “ | |
| Rapid traverse rate | X-axis | 1181 IPM |
| Z- axis | 1181 IPM | |
| Machine size | Width × Length (MAZATROL SmoothEz) | 73 ” × 94 “ |
| Height | 118 “ | |
| Machine weight | 20392 lbs |
* Chuck size options: 12″/15″/18″
