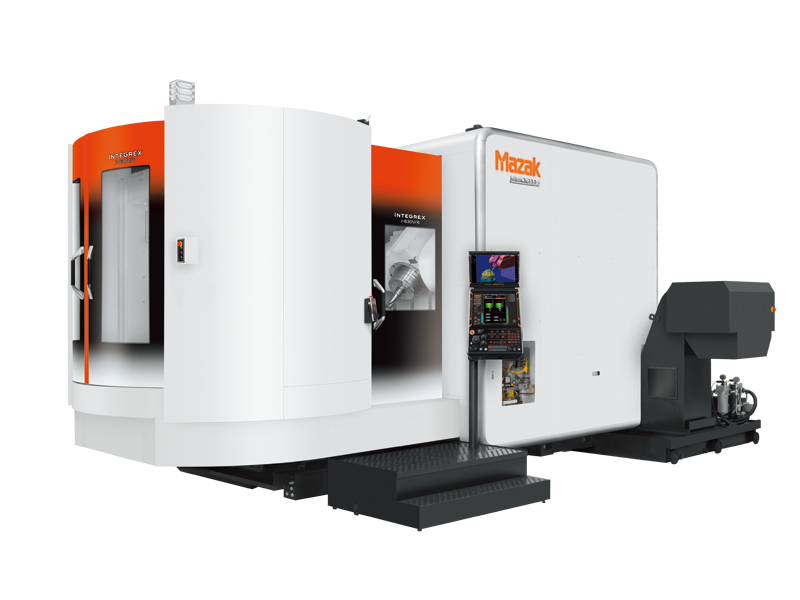

The Mazak Integrex i-630V brings together advanced machining capability and intelligent control in a single, efficient platform. Built for complex part production, it supports high-precision operations with full 5-axis motion and automation-ready design. From high-mix job shops to high-volume production lines, the i-630V delivers consistent results with the power and flexibility modern manufacturers need.
Integrex i-630V Features:
| Model | INTEGREX i-630V/6, INTEGREX i-630V/6S |
|---|---|
| Tool shank | 50 |
| Max. workpiece size | 41.34 × 39.37, 49.21 × 55.12 |
| Max. spindle speed | 550 |
$1.00
The Mazak Integrex i-630V is a high-performance CNC machining center engineered to streamline complex part production. As a versatile 5-axis machine, it combines turning, milling, drilling, and gear cutting into a single setup. As a result, it reduces part transfers, minimizes lead times, and improves overall workflow efficiency. This multitasking machine maintains tight tolerances and consistent surface finished, making it ideal for aerospace, energy, and heavy equipment applications.
At the core of the i-630V is the Mazak Ai Controller, also known as the MAZATROL SmoothX CNC control system. This intelligent platform supports conversational and EIA/ISO programming, adaptive machining, and real-time process feedback. In addition, it enables digital twin simulation for faster setup and greater accuracy. With available automation options like pallet changers, gantry loaders, and robotic integration, the i-630V supports lights-out operation and optimizes spindle utilization across multiple shifts.
Built with a rigid structure and a large machining envelope, the i-630V offers a tool magazine capacity of up to 160 tools and optional spindles reaching 10,000 RPM. These features make it easy for job shops and OEMs to scale production while maintaining repeatability and accuracy. In conclusion, the Integrex i-630V 5-axis machine delivers precision, flexibility, and seamless automation integration in a single CNC machining center.
| Model | INTEGREX i-630V/6, INTEGREX i-630V/6S |
|---|---|
| Tool shank | 50 |
| Max. workpiece size | 41.34 × 39.37, 49.21 × 55.12 |
| Max. spindle speed | 550 |
| Capacity | Max. machining diameter | Φ41″ |
|---|---|---|
| Max. workpiece size | Φ41″ × 39″ | |
| Table load capacity (evenly distributed) (including pallet) | 3858 lbs | |
| Table | Max. spindle speed | 550 rpm |
| Max. torque (cont. rating) | 3120 Nï½¥m | |
| Spindle motor (cont. rating)<!–th> | 37 kW (50 HP) | |
| Rapid traverse rate (C-axis) | 50 rpm | |
| Min. indexing angle increment (C-axis) | 0.0001° | <!–|
| Milling spindle | Max. spindle speed | 10000 rpm |
| Max. torque (40%ED) | 353 Nï½¥m | |
| Max. torque (cont. rating) | 248 Nï½¥m | |
| Spindle motor (40%ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Rapid traverse rate (B-axis) | 30 rpm | |
| Min. indexing angle increment (B-axis) | 0.0001° | |
| Automatic tool changer | Tool shank | CAT No.50 |
| Tool storage capacity | 43 | |
| Max. tool diameter | Φ5″<!–td> | |
| Max. tool diameter (without adjacent tool) | Φ10″ | |
| Max. tool length (from gauge line) | 20″ | |
| Max. tool weight | ||
| Travel | X-axis | 56″ |
| Y-axis | 41″ | |
| Z-axis | 41″ | |
| B-axis | 150° | |
| C-axis | 360° | |
| Rapid traverse rate | X-axish> | 2047 IPM |
| Y-axis | 2047 IPM | |
| Z-axis | 2047 IPM | |
| Machine size | Machine width × length | 220″ × 302″ |
| Machine height | 148″ | |
| Machine weight | 71980 lbs |
| Capacity | Max. machining diameter (OD)* | Φ49″ |
|---|---|---|
| Max. workpiece size | Φ49″ × 55″ | |
| Table load capacity (evenly distributed) (including pallet) | 3858 lbs | |
| Table | Max. spindle speed | 550 rpm |
| Max. torque (cont. rating) | 3120 Nï½¥m | |
| Spindle motor (cont. rating) | 37 kW (50 HP) | |
| Rapid traverse rate (C-axis) | 50 rpm | |
| Min. indexing angle increment (C-axis) | 0.0001° | |
| Milling spindle | Max. spindle speed | 10000 rpm |
| Max. torque (40%ED) | 353 Nï½¥m | |
| Max. torque (cont. rating) | 248 Nï½¥m | |
| Spindle motor (40%ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Rapid traverse rate (B-axis) | 30 rpm | |
| Min. indexing angle increment (B-axis) | 0.0001° | |
| Automatic tool changer | Tool shank | CAT No.50 |
| Tool storage capacity | 43 | |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent tool) | Φ10″ | |
| Max. tool length (from gauge line) | 20″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 56″ |
| Y-axis | 41″ | |
| Z-axis | 41″ | |
| B-axis | 150° | |
| C-axis | 360° | |
| Rapid traverse rate | X-axis | 2047 IPM |
| Y-axis | 2047 IPM | |
| Z-axis | 2047 IPM | |
| Machine size | Machine width × length | 234″ × 300″ |
| Machine height | 148″ | |
| Machine weight | 68011 lbs |
* When X-axis is at minus end: Φ41.34″
