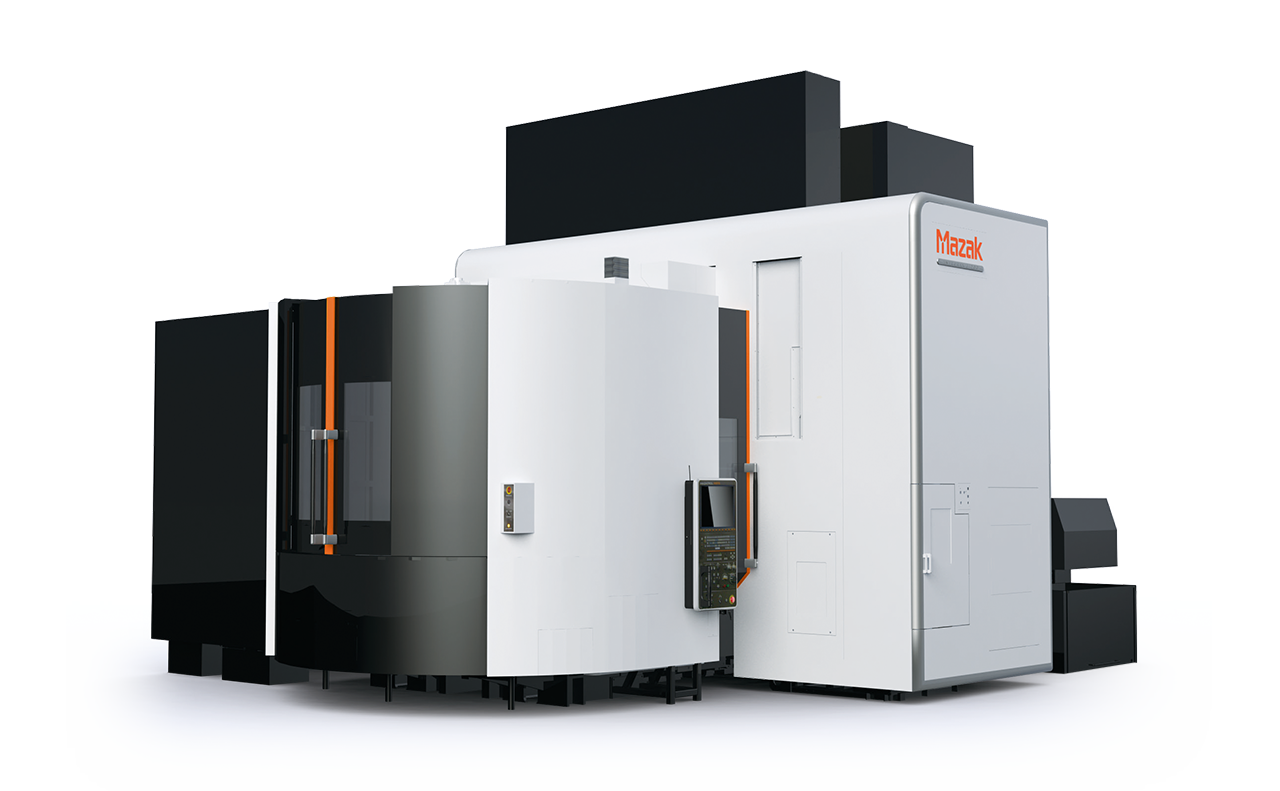

Integrex e-RAMTEC V

Engineered for Large Component Machining Solutions

The Mazak Integrex e-RAMTEC V is a complete large component machining solution designed for industries that demand precision and performance. For example, it’s ideal for aerospace, energy, and heavy equipment manufacturing applications. With the ability to handle oversized and complex parts, it offers exceptional structural rigidity, accuracy, and versatility for multi-surface and deep internal machining applications. Its robust design ensures consistent performance across extended machining cycles, even under heavy loads.

Purpose-Built Ram Spindle Machining Center

As an advanced ram spindle machining center, the Integrex e-RAMTEC V features a powerful turning spindle paired with a vertically mounted ram spindle capable of a 900 mm stroke. This configuration enables precise internal and external operations, including large-diameter inner face turning and milling. In addition, its thermal stability and rigid construction support high-torque cutting for excellent dimensional control and machining quality across complex geometries.

Deep Hole Boring and 5-Axis Vertical Machining Capabilities

The Integrex e-RAMTEC V is a high-precision deep hole boring machine, ideal for internal diameter machining at significant depths. For example, its vertical ram spindle eliminates extended tooling, to decrease vibration and improve straightness, roundness, and surface finish. The machine also delivers full 5-axis vertical machining capability with a B-axis tilting spindle and C-axis rotary table. As a result, it supports simultaneous multi-face operations, minimizes setups, and accelerate throughput. This integration of turning, milling, boring, and drilling functions makes it a powerful and efficient solution for large-part manufacturing.
