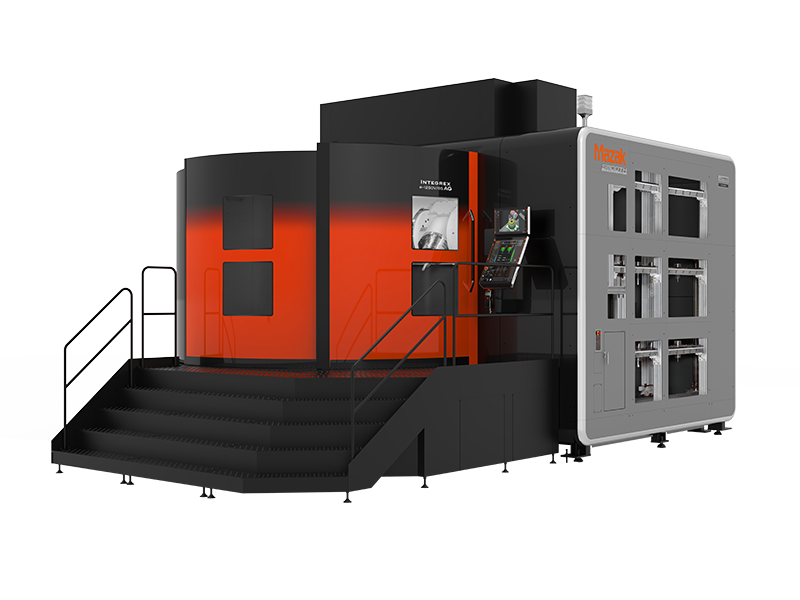

The Integrex e-1600V AG is a powerful multi-tasking CNC machining solution designed for demanding applications in aerospace, energy, and heavy construction. It combines full 5-axis machining, heavy-duty turning, and pallet-changing in one platform—ideal for large, complex parts like jet engine casings and gearboxes in materials such as titanium and steel.
Integrex e-1600V AG Features:
| Model | Integrex e-1600V/10 AG, Integrex e-1600V/10S AG |
|---|---|
| Chuck Size | |
| Max Machining Diameter | 80.71, 90.55 |
| Max Machining Length | 62.99, 66.3 |
$1.00
Mazak engineers built the Integrex e-1600V AG to machine complex parts for demanding operations. For example, it features configurable spindles for high-speed or high-torque cutting, and a tilting B-axis. These features provide full multi-surface machining in one setup to reduce handling and non-cut time. This machining center also features a large-capacity tool changer with up to 162 tools supports high-mix production and quick changeovers. In addition, its front-facing magazine allows fast inspection and tool adjustments for improved uptime and a direct-drive rotary table ensures stable movement and delivers consistent machining accuracy under heavy loads.
Mazak equipped the Integrex e-1600V AG with Smooth Gear Cutting software for efficient gear production. For example, the software integrates Gear Skiving, Hobbing, and Milling to streamline spur, helical, and spline gear machining. In addition, Smooth Gear Check Plus enables in-process inspection, which eliminates separate measuring steps and improves part quality. These functions are part of Mazak’s intelligent CNC solutions, helping manufacturers hold tighter tolerances and improve throughput.
The Integrex e-1600V AG is designed for high-mix, high-volume operations. Its multi-tasking design, automation readiness, and adaptable tool changer architecture help maximize asset utilization. Combined with advanced CNC solutions and high machining accuracy, the Integrex e-1600V AG supports smart manufacturing strategies and ensures consistent results.
Compare to other Mazak Multi-Tasking machines for sale
| Model | Integrex e-1600V/10 AG, Integrex e-1600V/10S AG |
|---|---|
| Chuck Size | |
| Max Machining Diameter | 80.71, 90.55 |
| Max Machining Length | 62.99, 66.3 |
| Capacity | Max. machining diameter | Φ81″ |
|---|---|---|
| Max. workpiece size | Φ81″ × 63″ | |
| Table load capacity (evenly distributed) (including pallet) | 11023 lbs | |
| Table | Max. spindle speed | 300 rpm |
| Max. torque (cont. rating) | 3434 Nï½¥m | |
| Spindle motor (cont. rating) | 40 kW (53 HP) | |
| Rapid traverse rate (C-axis) | 20 rpm | |
| Min. indexing angle increment (C-axis) | 0.0001° | |
| Milling spindle | Max. spindle speed | 10000 rpm |
| Max. torque (40%ED) | 260 Nï½¥m | |
| Max. torque (cont. rating) | 191 Nï½¥m | |
| Spindle motor (40%ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Rapid traverse rate (B-axis) | 30 rpm | |
| Min. indexing angle increment (B-axis) | 0.0001° | |
| Automatic tool changer | Tool shank | CAT No.50 |
| Tool storage capacity | 42 | |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent tool) | Φ10″ | |
| Max. tool length (from gauge line) | 26″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 91″ |
| Y-axis | 63″ | |
| Z-axis | 53″ | |
| B-axis | 150° | |
| C-axis | 360° | |
| Rapid traverse rate | X-axis | 1654 IPM |
| Y-axis | 1654 IPM | |
| Z-axis | 1654 IPM | |
| Machine size | Machine width × length | 244″ × 381″ |
| Machine height | 179″ | |
| Machine weight | 127866 lbs |
* When X-axis is at minus end: Φ43.31″
| Capacity | Max. machining diameter | Φ91″ |
|---|---|---|
| Max. workpiece size | Φ91″ × 66″ | |
| Table load capacity (evenly distributed) (including pallet) | 15432 lbs | |
| Table | Max. spindle speed | 300 rpm |
| Max. torque (cont. rating) | 3434 Nï½¥m | |
| Spindle motor (cont. rating) | 40 kW (53 HP) | |
| Rapid traverse rate (C-axis) | 20 rpm | |
| Min. indexing angle increment (C-axis) | 0.0001° | |
| Milling spindle | Max. spindle speed | 10000 rpm |
| Max. torque (40%ED) | 260 Nï½¥m | |
| Max. torque (cont. rating) | 191 Nï½¥m | |
| Spindle motor (40%ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Rapid traverse rate (B-axis) | 30 rpm | |
| Min. indexing angle increment (B-axis) | 0.0001° | |
| Automatic tool changer | Tool shank | CAT No.50 |
| Tool storage capacity | 42 | |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent tool) | Φ10″ | |
| Max. tool length (from gauge line) | 26″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 85″ |
| Y-axis | 63″ | |
| Z-axis | 53″ | |
| B-axis | 150° | |
| C-axis | 360° | |
| Rapid traverse rate | X-axis | 1654 IPM |
| Y-axis | 1654 IPM | |
| Z-axis | 1654 IPM | |
| Machine size | Machine width × length | 274″ × 343″ |
| Machine height | 179″ | |
| Machine weight | 102954 lbs |
* When X-axis is at minus end: Φ43.31″
