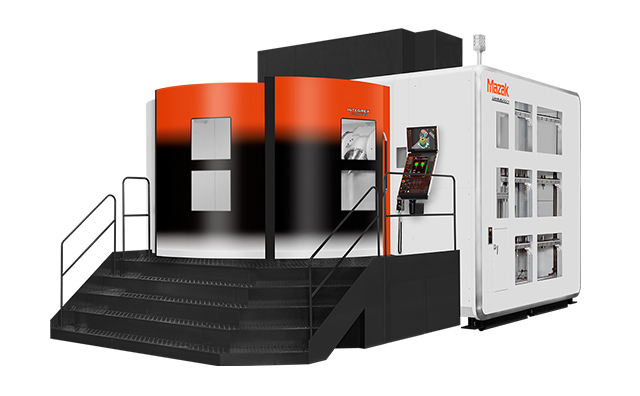

The Mazak Integrex e-1250V is a high-performance multitasking machine designed to combine the power of turning and 5-axis machining within a single, efficient setup. Ideal for large and complex components, it delivers high accuracy, flexibility, and productivity across demanding industrial applications. This CNC machining center is engineered to support precision and efficiency in high-value production environments such as aerospace, energy, and heavy equipment manufacturing.
Integrex e-1250V Features:
| Model | INTEGREX e-1250V/8, INTEGREX e-1250V/8S |
|---|---|
| Tool shank | 50 |
| Max. workpiece size | 57.09 × 62.99, 59.06 × 65.16 |
| Max. spindle speed | 500 |
$1.00
The Mazak Integrex e-1250V is a next-generation multitasking machine built for demanding production environments. It combines turning, milling, drilling, and full 5-axis machining into a single high-precision platform. As a result, it reduces part transfers, improves feature-to-feature accuracy, and accelerates throughput. Manufacturing engineers in aerospace, energy, and heavy industrial sectors rely on the e-1250V for consistent performance, reduced cycle times, and exceptional accuracy.
By completing multiple operations in one setup, this CNC machining center minimizes repositioning and reduces error accumulation. This capability shortens turnaround times and helps machine shops meet strict quality standards. In addition, the machine integrates easily with robotic systems, pallet changers, and gantry loaders. This makes it ideal for high-mix, low-volume workflows as well as fully automated production cells. As a result, shops can scale production while keeping labor requirements low and maintaining repeatable precision.
Mazak’s Smooth CNC control delivers intuitive programming, supporting both conversational and EIA/ISO code formats. This intelligent control platform streamlines setup, reduces programming errors, and enhances overall productivity. Furthermore, its real-time optimization features help operators maintain machining accuracy over long production cycles. In conclusion, the Mazak Integrex e-1250V 5-axis machining center offers multitasking power, automation readiness, and long-term reliability—making it a trusted solution for advanced industrial manufacturing.
| Model | INTEGREX e-1250V/8, INTEGREX e-1250V/8S |
|---|---|
| Tool shank | 50 |
| Max. workpiece size | 57.09 × 62.99, 59.06 × 65.16 |
| Max. spindle speed | 500 |
| Capacity | Max. machining diameter | Φ57″ |
|---|---|---|
| Max. workpiece size | Φ57″ × 63″ | |
| Table load capacity (evenly distributed) (including pallet) | 5952 lbs | |
| Table | Max. spindle speed | 500 rpm |
| Max. torque (cont. rating) | 3434 Nï½¥m | |
| Spindle motor (cont. rating) | 40 kW (53 HP) | |
| Rapid traverse rate (C-axis) | 25 rpm | |
| Min. indexing angle increment (C-axis) | 0.0001° | |
| Milling spindle | Max. spindle speed | 10000 rpm |
| Max. torque (30 min. rating) | 260 Nï½¥m | |
| Max. torque (cont. rating) | 191 Nï½¥m | |
| Spindle motor (40%ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Rapid traverse rate (B-axis) | 30 rpm | |
| Min. indexing angle increment (B-axis) | 0.0001° | |
| Automatic tool changer | Tool shank | CAT50 |
| Tool storage capacity | 42 | |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent tool) | Φ10″ | |
| Max. tool length (from gauge line) | 26″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 74″ |
| Y-axis | 49″ | |
| Z-axis | 53″ | |
| B-axis | 150° | |
| C-axis | 360° | |
| Rapid traverse rate | X-axis | 1654 IPM |
| Y-axis | 1654 IPM | |
| Z-axis | 1654 IPM | |
| Machine size | Machine width × length | 205″ × 315″ |
| Machine height | 173″ | |
| Machine weight | 109127 lbs |
| Capacity | Max. machining diameter | Φ59″ |
|---|---|---|
| Max. workpiece size | Φ59″ × 65″ | |
| Table load capacity (evenly distributed) (including pallet) | 8818 lbs | |
| Table | Max. spindle speed | 500 rpm |
| Max. torque (cont. rating) | 3434 Nï½¥m | |
| Spindle motor (cont. rating) | 40 kW (53 HP) | |
| Rapid traverse rate (C-axis) | 25 rpm | |
| Min. indexing angle increment (C-axis) | 0.0001° | |
| Milling spindle | Max. spindle speed | 10000 rpm |
| Max. torque (40%ED) | 260 Nï½¥m | |
| Max. torque (cont. rating) | 191 Nï½¥m | |
| Spindle motor (40%ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Rapid traverse rate (B-axis) | 30 rpm | |
| Min. indexing angle increment (B-axis) | 0.0001° | |
| Automatic tool changer | Tool shank | CAT No.50 |
| Tool storage capacity | 42 | |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent tool) | Φ10″ | |
| Max. tool length (from gauge line) | 26″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 74″ |
| Y-axis | 49″ | |
| Z-axis | 53″ | |
| B-axis | 150° | |
| C-axis | 360° | |
| Rapid traverse rate | X-axis | 1654 IPM |
| Y-axis | 1654 IPM | |
| Z-axis | 1654 IPM | |
| Machine size | Machine width × length | 205″ × 342″ |
| Machine height | 173″ | |
| Machine weight | 99206 lbs |
