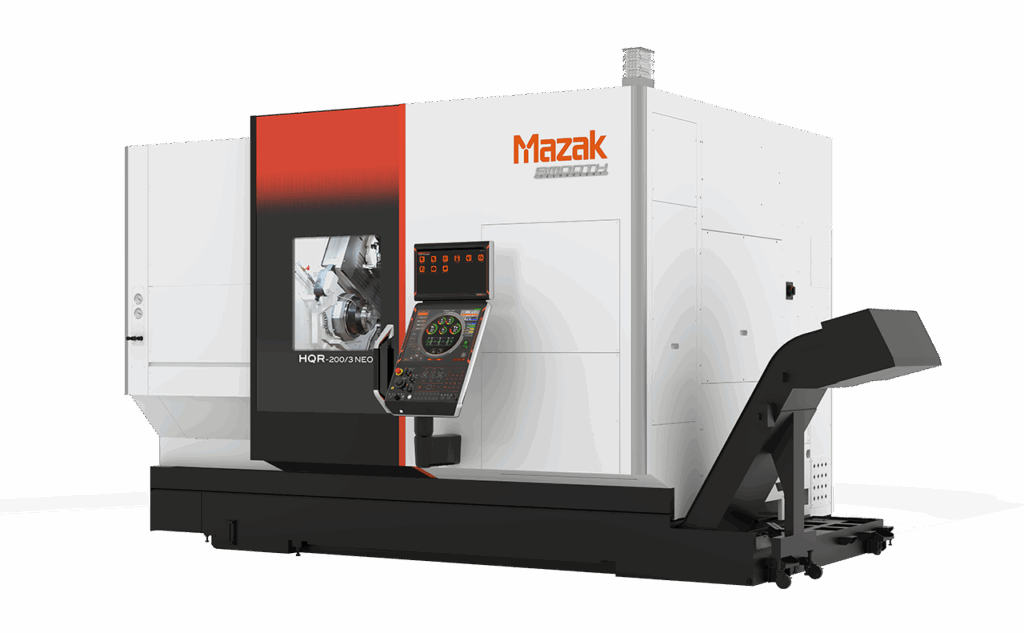

Mazak HQR-200 NEO turning CNC machine with multi-channel CNC system and SmoothG control delivers efficient, high-precision CNC turning for complex parts.

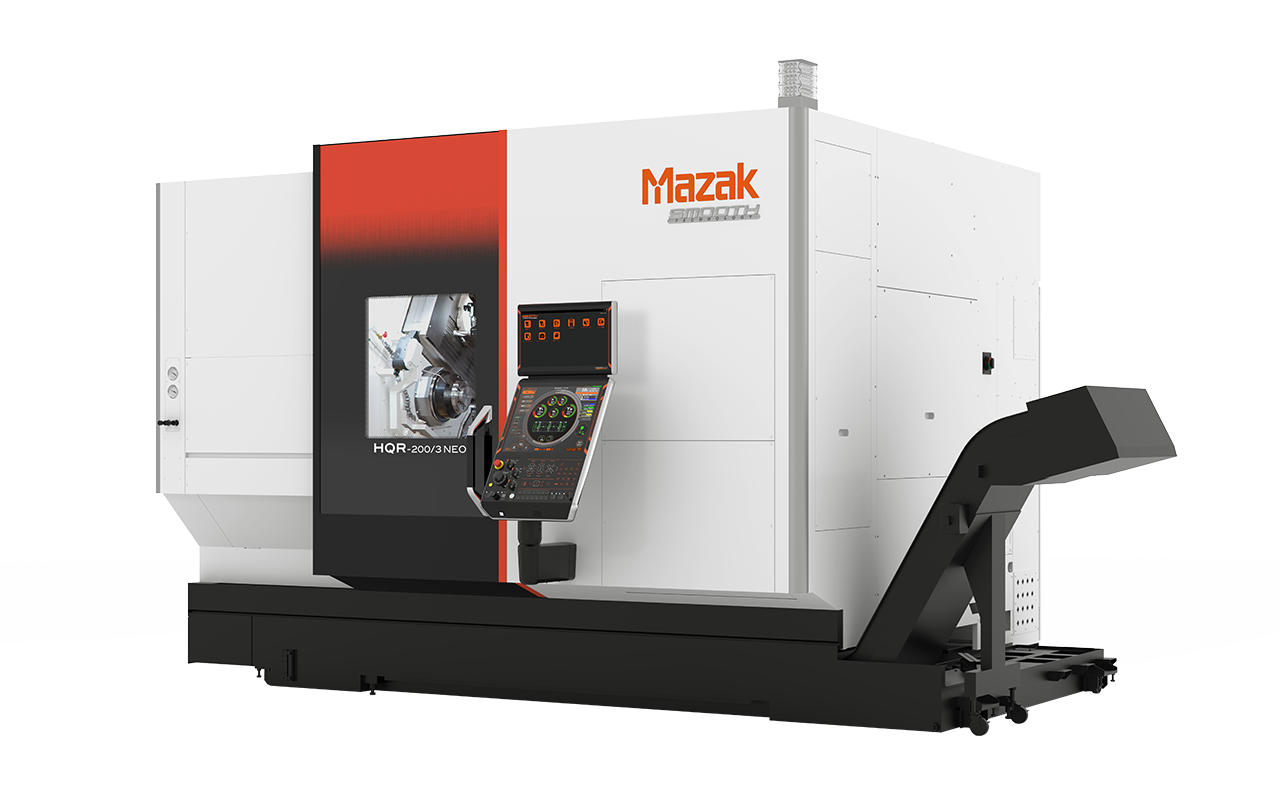

HQR-200 NEO

The Mazak HQR-200 NEO is a high-performance turning CNC machine engineered for speed, precision, and efficiency. With dual spindles, dual turrets, and a powerful multi-channel CNC system, it reduces cycle times while delivering consistent high-precision CNC turning for complex parts across demanding industries.


HQR-200 NEO Features:
  • 3 turret / 2 spindle machine construction for faster cycle times
  • Bar work capacity up to Φ4.02″ (option)
  • Automation system for various applications from chuck to shaft workpiece
  • The CNC system MAZATROL SmoothG3 for highly efficient machining with 3 turret
Model

HQR-200/3 NEO
Chuck Size

Max Machining Diameter

12.6
Max Machining Length

33.86

$1.00

SKU N/A Categories: , Brand:
Description
High-Efficiency Turning CNC Machine for Precision Production

The Mazak HQR-200 NEO is a high-performance turning CNC machine built to meet the demands of modern manufacturing. With dual spindles and dual turrets, it supports full 4-axis machining to deliver maximum productivity. In addition, its advanced multi-channel CNC system enables simultaneous operation across axes, which reduces cycle times and increases throughput—especially for applications requiring high-precision CNC turning on complex geometries.



Multi-Channel CNC System for Faster Throughput

The HQR-200 NEO’s multi-channel CNC system allows both spindles and turrets to operate at the same time. This capability reduces idle time, improves part consistency, and ensures higher output per shift. By combining stability with speed, it enables efficient machining for industries that require tight tolerances and repeatable results.



SmoothG Control for Accuracy and Ease of Use

Equipped with Mazatrol SmoothG control, the HQR-200 NEO simplifies complex programming while improving processing speed. Operators benefit from conversational programming, real-time monitoring, and optimized tool paths, all of which shorten setup times. Backed by its rigid design and dual-turret layout, the machine consistently delivers the precision required for high-precision CNC turning.

Additional Information
Model

HQR-200/3 NEO
Chuck Size

Max Machining Diameter

12.6
Max Machining Length

33.86
Hqr-200/3 NEO
Universal Universal type 850U
Spindle Chuck size 8 “
Max. spindle speed 5000 rpm
Max. torque (25%ED) 344 ft-lbs
Spindle motor (30 min. rating) 22 kW (30 HP)
Spindle motor (cont. rating) 15 kW (20 HP)
Second spindle Chuck size 8 “
Max. spindle speed 5000 rpm
Spindle motor (30 min. rating) 22 kW (30 HP)
Spindle motor (cont. rating) 15 kW (20 HP)
Upper and lower turret Tool storage capacity 12
Tool shank height 1 “
Boring bar shank diameter Φ2 “
Rotary tool spindle Max. spindle speed 6000 rpm
Max. torque (3 min. rating) 26 ft-lbs
Spindle motor (10 min. rating) 5.5 kW (7.5 HP)
Spindle motor (cont. rating) 2.2 kW (3 HP)
Travel X-axis(Upper turret / Lower turret)* 8 ” / 8 “
Y-axis (upper turret / lower turret) 4″ (±2″) / 4″ (±2″)
Z-axis (upper turret / lower turret) 24 ” / 32 “
Rapid traverse rate X-axis (upper turret / lower turret) 1181 IPM / 1181 IPM
Y-axis (upper turret / lower turret) 1024 IPM / 787 IPM
Z-axis (upper turret / lower turret) 1417 IPM / 1417 IPM
Machine size Width × Length (MAZATROL SmoothG) 138 ” × 109 “
Height 100 “
Machine weight 34832 lbs

* Travel of left upper turret. Travel of the right upper turret is 253 mm.
