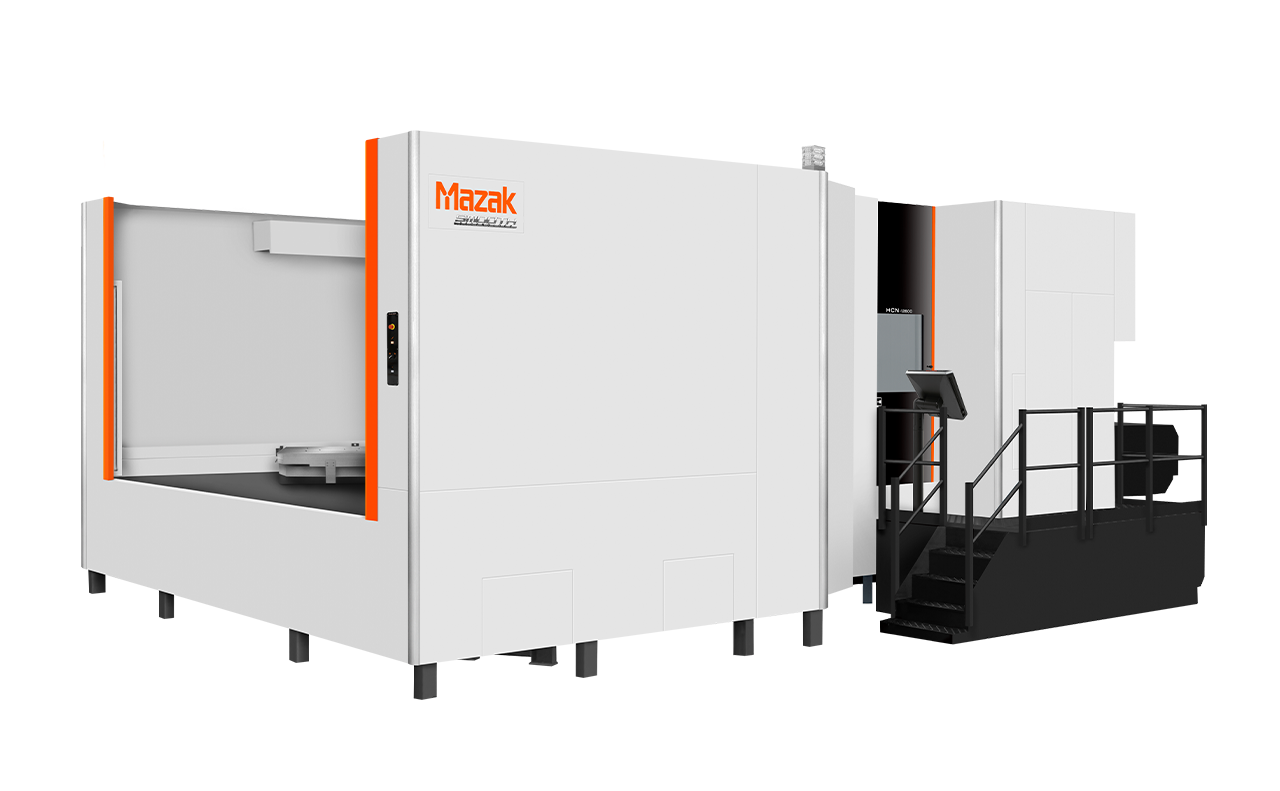

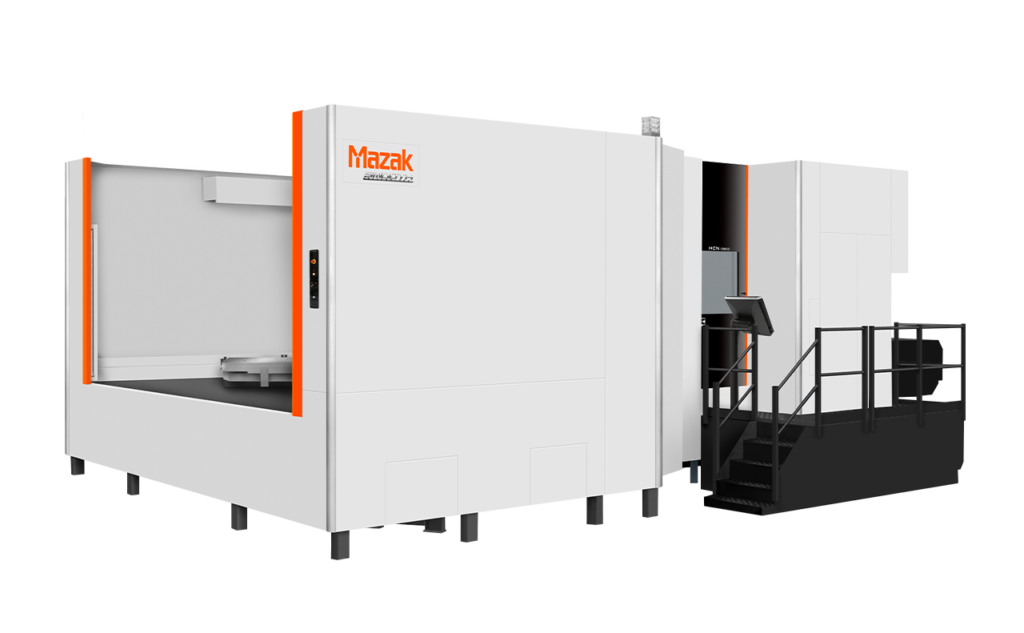

The Mazak HCN-12800 is a high-capacity horizontal machining center designed to handle large workpieces with precision and efficiency. Built for demanding production environments, it combines structural rigidity, thermal stability, and automation compatibility, making it a proven solution for manufacturers in aerospace, energy, and heavy equipment sectors.
HCN-12800 Features:
| Model | HCN-12800 |
|---|---|
| Pallet size | 49.21 × 49.21 |
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Max. workpiece size | 94.49 × 78.74 |
$1.00
The HCN-12800 features a reinforced bed and column design, which minimizes vibration during heavy cuts. In addition, the rigid structure on this horizontal milling solution maintains accuracy under high spindle loads, reduces tool deflection and ensures repeatable results. It also features linear roller guides and thermal management systems to support dimensional stability. As a result, machine shops can maintain part quality on large components or in running long-cycle jobs.
The HCN-12800 is a high-speed machining solution powered with a high-torque spindle for efficient roughing and precise finishing. In addition, its rapid axis acceleration minimizes non-cutting time to increase productivity for high-volume manufacturing. Rapid axis acceleration reduces non-cutting time to improve throughput for high-volume applications. This balance of speed and torque makes the HCN-12800 ideal for large workpieces that demand both aggressive material removal and precise surface finishes.
Designed to integrate with Mazak automation systems, the HCN-12800 supports pallet changers, robotic handling, and monitoring tools to enable continuous production. This automation compatibility reduces idle time, increases spindle utilization, and helps manufacturers meet tight production schedules. As production demands grow, the HCN-12800 scales easily to deliver consistent output across complex part families.
| Model | HCN-12800 |
|---|---|
| Pallet size | 49.21 × 49.21 |
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Max. workpiece size | 94.49 × 78.74 |
| Spindle | Tool shank | CAT No.50 |
|---|---|---|
| Max. spindle speed | 10000 rpm | |
| Max. torque (30 min. rating) | 350 Nï½¥m | |
| Max. torque (cont. rating) | 238 Nï½¥m | |
| Spindle motor (30 min. rating) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 80 |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent) | Φ10″ | |
| Max. tool length (from gauge line) | 32″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 87″ |
| Y-axis | 63″ | |
| Z-axis | 73″ | |
| Distance between pallet top to spindle center | 4″ to 67″ | |
| Rapid traverse rate | X-axis | 1693 IPM |
| Y-axis | 1693 IPM | |
| Z-axis | 1693 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 277″ × 429″ |
| Height | 178″ | |
| Machine weight | 126764 lbs |
