| Model | HCN-12500Q, HCN-12500QS |
|---|---|
| Pallet size | 49.21 × 49.21 |
| Tool shank | 50 |
| Max. spindle speed | 3000 |
| Max. workpiece size | 92.52 × 70.87 |
$1.00

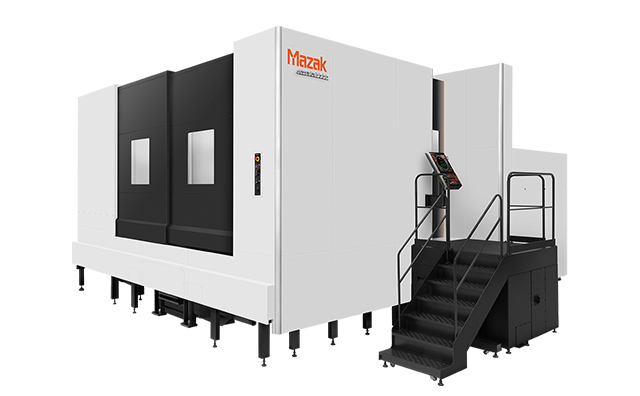

The Mazak HCN-12500Q is a high-capacity horizontal machining center built for heavy-duty operations that demand precision and speed. In addition, its extended axis travels and rigid construction ensure consistent performance, and the robust framework supports large-scale part production. As a result, it’s ideal for industrial machining environments that require precision under pressure.
The HCN-12500Q offers enhanced spindle power for industries such as aerospace, construction equipment, and energy production. This industrial machining center maintains tight tolerances during aggressive material removal and fine finishing. In addition, Mazak engineers gave it thermal stability and rigidity to ensure it produces accurate parts during long production cycles. The machine also supports seamless automation integration, adapting easily to pallet systems and robotic material handling. This capability improves uptime, reduces manual intervention, and supports lean manufacturing initiatives.
Mazak’s CNC interface streamlines operation with intuitive programming tools and real-time data insights. As a result, it decreases set up times and improves high-mix production. In conclusion, the HCN-12500Q combines advanced controls, automation readiness, and high structural rigidity, empowering manufacturers to meet modern productivity targets and achieve long-term ROI.
| Model | HCN-12500Q, HCN-12500QS |
|---|---|
| Pallet size | 49.21 × 49.21 |
| Tool shank | 50 |
| Max. spindle speed | 3000 |
| Max. workpiece size | 92.52 × 70.87 |
| Spindle | Tool shank | CAT No.50 |
|---|---|---|
| Max. spindle speed | 3000 rpm | |
| Quill diameter | Φ5″d> | |
| Max. torque (40%ED) | 1848 Nï½¥m | |
| Max. torque (cont. rating) | 1357 Nï½¥m | |
| Spindle motor (40%ED) | 45 kW (60 HP) | |
| Spindle motor (cont. rating) | 37 kW (50 HP) | |
| Automatic tool changer | Tool storage capacity | 80 |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent) | Φ10″ | |
| Max. tool length (from gauge line) | 32″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 80″ |
| Y-axis | 55″ | |
| Z-axis | 60″ | |
| W-axis | 22″ | |
| B axis (Continuous) | 360° | |
| Distance between pallet top to spindle center | 6″ to 61″ | |
| Rapid traverse rate | X-axis | 1181 IPM |
| Y-axis | 1181 IPM | |
| Z-axis | 1181 IPM | |
| W-axis | 354 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 268″ × 383″ |
| Height | 161″ | |
| Machine weight | 125664 lbs |
| Spindle | Tool shank | CAT No.50 |
|---|---|---|
| Max. spindle speed | 3000 rpm | |
| Quill diameter | Φ5″ | |
| Max. torque (40%ED) | 1848 Nï½¥m | |
| Max. torque (cont. rating) | 1357 Nï½¥m | |
| Spindle motor (40%ED) | 45 kW (60 HP) | |
| Spindle motor (cont. rating) | 37 kW (50 HP) | |
| Automatic tool changer | Tool storage capacity | 80 |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent) | Φ10″ | |
| Max. tool length (from gauge line) | 32″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 80″ |
| Y-axis | 55″ | |
| Z-axis | 60″ | |
| W-axis | 22″ | |
| B axis (Continuous) | 360° | |
| Distance between pallet top to spindle center | 6″ to 61″ | |
| Rapid traverse rate | X-axis | 1181 IPM |
| Y-axis | 1181 IPM | |
| Z-axis | 1181 IPM | |
| W-axis | 354 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 268″ × 316″ |
| Height | 160″ |
