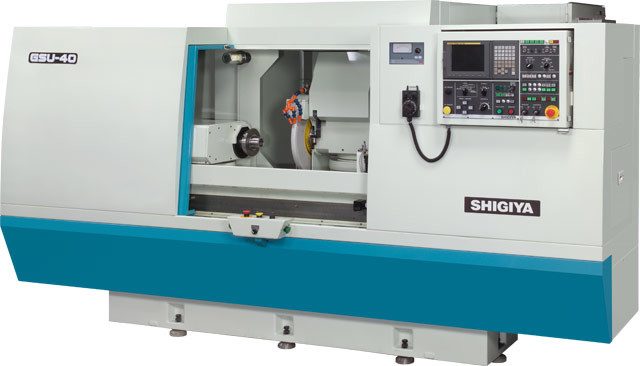

When it comes to productivity solutions for many complex applications, the GSU-40B multi-process type CNC universal grinder delivers uncompromising performance. Designed for peak operation in one chucking, the GSU-40B brings precision, convenience and flexibility for a wide range of grinding operations. This universal machine processes even the most difficult workpieces quickly and accurately.
Metric
| Specifications | Units | |
|---|---|---|
| Swing Over Table | mm | 410 |
| Distance Between Centers | mm | 470, 720, 970, 1470 |
| Weight Capacity | kg | 150 |
| Machine Weight | kg | 4800 |
Standard
| Specifications | Units | |
|---|---|---|
| Swing Over Table | inch | 16.14 |
| Distance Between Centers | inch | 18.51/28.35/38.19/57.88 |
| Weight Capacity | lbs | 330.69 |
| Machine Weight | Ibs | 10582.19 |
The Shigiya GSU-40B is a high-performance CNC universal grinder designed for efficient, multi-process grinding in a single chucking. As manufacturing demands grow more complex, this universal cylindrical grinder ensures top-tier precision, reduced cycle times, and versatile operation. Whether you’re tackling high-mix, low-volume jobs or precision components, the GSU-40B delivers accuracy and productivity every time.
Incorporating a user-friendly CNC system and rugged construction, the GSU-40B maintains stability and repeatability across a wide range of applications. As a result, manufacturers gain the flexibility needed to handle tight tolerances and diverse part geometries, without compromising on throughput.
One standout feature is the NC swivel wheelhead, which enables various wheelhead installation patterns. This innovation streamlines tool changes and allows for multiple grinding techniques on a single machine. Because of this, operators can easily switch between internal, external, and face grinding with minimal setup.
Furthermore, the NC-controlled wheelhead simplifies complex angle adjustments, which improves efficiency in operations that require frequent configuration changes. This makes it ideal for production environments that demand both speed and precision.
The GSU-40B provides high-precision grinding that meets the needs of today’s advanced manufacturing. Beyond cylindrical grinding, it supports polygonal grinding for components with non-round geometries. This added versatility is perfect for creating precision parts used in sectors like aerospace, medical, and automotive.
Moreover, the machine’s rigid structure reduces vibration and thermal deformation, leading to smoother finishes and tighter tolerances. Even when performing demanding polygonal grinding, the GSU-40B ensures parts are consistently accurate and production-ready.
Equipped with dual wheel spindles, this grinder allows manufacturers to perform multiple operations in one setup. This not only shortens cycle times but also minimizes operator intervention, making the process far more efficient. In turn, productivity increases without compromising part quality.
Thanks to this dual-spindle setup, shops can perform roughing and finishing operations without swapping wheels. Consequently, downtime drops and overall efficiency rises.
