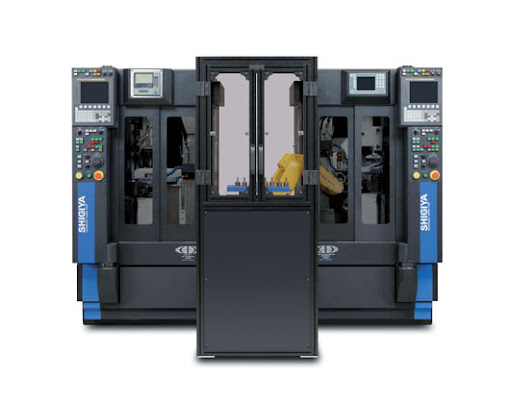

The Shigiya GPV-10 is a compact vertical cylindrical grinder built for high-precision grinding of short, high-accuracy components. It delivers consistent, repeatable results through a rigid vertical machine structure, stable thermal performance, and precise axis control. As a result, the GPV-10 supports efficient part handling and reliable accuracy in applications well suited for vertical grinding configurations.
The GPV-10 is a compact, high-precision vertical CNC cylindrical grinder designed to support small-part production in space-conscious environments. Its vertical orientation allows efficient floor space utilization while maintaining rigid stability and grinding accuracy. Because this vertical CNC cylindrical grinder combines a space-saving layout with full CNC control, it serves industries such as medical, electronics, and precision tooling that require both performance and compact design.
As a compact CNC grinder, the GPV-10 provides full-featured grinding capability within a minimal footprint. Despite its size, it delivers precise spindle alignment, stable table travel, and consistent performance across short or long cycles. This compact CNC grinder accommodates both short-run and continuous production, making it an effective solution for small components that require high repeatability and minimal downtime.
Engineered as a high-precision grinding machine, the GPV-10 achieves micron-level tolerances for complex profiles and delicate features. Its integrated temperature control system and rigid column structure ensure long-term dimensional stability. In addition, this high-precision grinding machine supports both roughing and finishing passes without requiring frequent tool changes. This simplifies production and improves consistency across shifts.
The GPV-10 is built specifically for small workpiece grinding. Its tooling options and motion control system accommodate parts such as valve stems, shafts, and precision pins. With stable holding and precise wheel contact, this small workpiece grinding system enables operators to maintain surface finish and dimensional accuracy at all times.
The GPV-10 also functions as an automation-ready CNC grinder, allowing easy integration with robotic loading, in-line gauging, and automated part handling systems. Its control platform supports lights-out operation and rapid job changeovers. Because it performs well in automated environments, this automation-ready CNC grinder supports manufacturers looking to scale production without increasing labor requirements.
Metric
| Specifications | Units | |
|---|---|---|
| Swing Over Table | mm | 100 |
| Distance Between Centers | mm | 150, 200 |
| Weight Capacity | kg | 10 |
| Machine Weight | kg | 1900 / 1950 |
| Wheel Size OD | mm | 305 / 355 |
| Wheel size width | mm | 25 |
| Wheel spindle | KW | 2.2 |
Standard
| Specifications | Units | |
|---|---|---|
| Swing Over Table | inch | 3.93 |
| Distance Between Centers | inch | 5.91 / 7.87 |
| Weight Capacity | lbs | 22.05 |
| Machine Weight | Ibs | 4188.78 / 4299.01 |
| Wheel Size OD | inch | 12.01 / 13.98 |
| Wheel size width | inch | 0.98 |
| Wheel spindle | HP | 2.95 |
