Metric
| Specifications | Units | |
|---|---|---|
| Swing Over Table | mm | 300 |
| Distance Between Centers | mm | 500, 750, 1000, 1500, 2000 |
| Weight Capacity | kg | 150 |
| Machine Weight | kg | 2800 / 3100 / 3800 / 4600 |
| Wheel Size OD | mm | 405 / 455 / 510 |
| Wheel size width | mm | 100 |
| Wheel spindle | KW | 3.7 / 5.5/7.5 |
Standard
| Specifications | Units | |
|---|---|---|
| Swing Over Table | inch | 11.81 |
| Distance Between Centers | inch | 19.69 / 29.53 / 39.37 / 59.06 / 78.74 |
| Weight Capacity | lbs | 330.69 |
| Machine Weight | Ibs | 6172.94 / 6834.33 / 8377.57 / 10141.26 |
| Wheel Size OD | inch | 15.94 / 17.91 / 20.08 |
| Wheel size width | inch | 3.94 |
| Wheel spindle | HP | 4.96 / 7.38 / 10.06 |

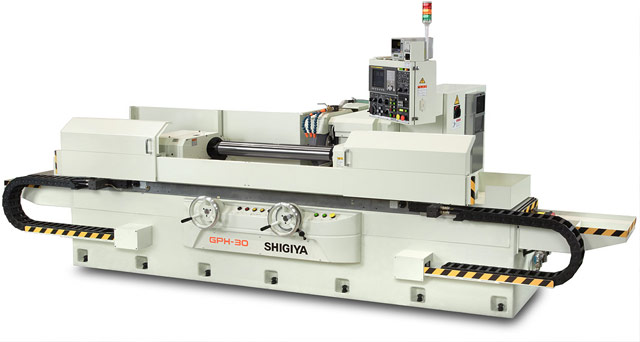

The GPH-30B is a compact yet powerful CNC cylindrical grinder engineered for precision and flexibility. Designed to handle both small-batch and high-volume applications, it delivers repeatable accuracy across a range of grinding operations. Its rigid construction and smooth CNC controls ensure consistent results with minimal effort.
Because the CNC cylindrical grinder is built for efficiency, it helps manufacturers improve throughput while maintaining part quality. The machine is ideal for aerospace, automotive, and general machining sectors where reliability is key.
The GPH-30B functions as a reliable high-precision grinding machine that meets the needs of shops handling tight tolerances and complex part geometries. Its wheelhead and spindle system maintain micron-level accuracy even during long production runs.
In addition, this high-precision grinding machine allows operators to grind with confidence, knowing the finish will meet exacting standards. From hardened steels to specialty alloys, the GPH-30B handles challenging materials with ease.
What makes this model truly unique is its role as a versatile CNC grinder with the added benefit of manual feed handwheels. These handwheels allow for fine adjustments during setup and low-volume grinding, giving users more control when it matters most.
Because the manual feed handwheels complement the CNC control system, shops can switch between automated cycles and manual fine-tuning without interrupting production. This flexibility makes the GPH-30B a go-to solution for prototype work and regrinds.
The GPH-30B fits seamlessly into modern automated grinding solutions. It integrates easily with robotic loaders and part conveyors, allowing lights-out operation and reduced labor requirements.
Moreover, shops using automated grinding solutions benefit from improved part consistency and increased output. The machine’s CNC platform is stable, easy to program, and built for high-mix production environments.
As trusted precision machining equipment, the GPH-30B is engineered for daily use and long-term durability. It maintains accuracy over time while reducing downtime and operating costs.
More importantly, the GPH-30B functions as both a high-precision grinding machine and a flexible solution for evolving production needs. Whether producing shafts, bearing races, or custom components, this machine supports your shop’s performance goals.
