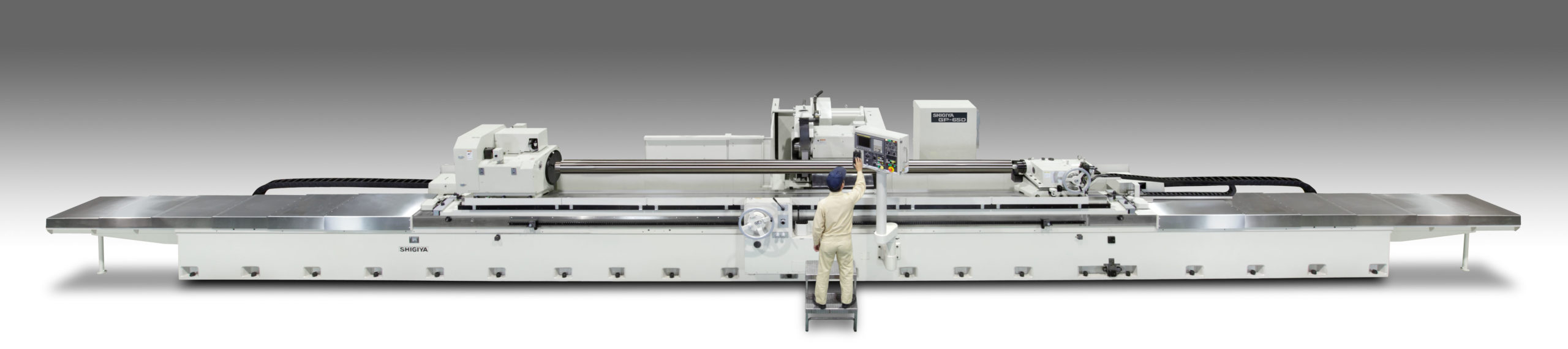

Rugged, heavy-duty, versatile CNC cylindrical grinder capable of handling heavy workpieces precisely between centers.
Metric
| Specifications | Units | |
|---|---|---|
| Swing Over Table | mm | 1000 |
| Distance Between Centers | mm | 2200, 3000, 4000, 5000, 6000 |
| Weight Capacity | kg | 3000 |
| Machine Weight | kg | 22,000 / 24,000 / 26,000 / 29,000 |
| Wheel Size OD | mm | 915 / 1065 |
| Wheel size width | mm | 130* |
| Wheel spindle | KW | 15 / 22 |
Standard
| Specifications | Units | |
|---|---|---|
| Swing Over Table | inch | 39.37 |
| Distance Between Centers | inch | 86.62 / 118.11 / 157.48 / 196.85 / 236.22 |
| Weight Capacity | lbs | 6613.87 |
| Machine Weight | Ibs | 48501.7 / 52910.94 / 57320.19 / 63934.06 |
| Wheel Size OD | inch | 36.02 / 41.93 |
| Wheel size width | inch | 5.12* |
| Wheel spindle | HP | 20.12/ 29.5 |
The GP-100D is a heavy-duty large workpiece grinding machine engineered for long and oversized parts. It handles large shafts, rollers, and cylindrical components while keeping tolerances tight.
Its generous swing and long-distance between centers make it a smart fit for energy, aerospace, and defense work. Because this large workpiece grinding machine stays stable under load, it ensures consistent results—regardless of part length or material.
The GP-100D also functions as a table-traversing cylindrical grinder. Its servo-driven table glides smoothly over extended lengths. As a result, the machine maintains precision and part alignment throughout each pass.
In addition, the rigid base and guideways help reduce vibration. This design improves finish quality and supports long-term repeatability. Shops looking to grind long parts will benefit from this table-traversing cylindrical grinder setup.
The GP-100D serves as dependable high-precision grinding equipment. It uses a high-torque spindle, temperature-controlled systems, and rigid drives to maintain tight tolerances. Because the GP-100D provides accurate, repeatable grinding, manufacturers can meet exacting specs with confidence. As reliable high-precision grinding equipment, it fits into both high-mix and high-output operations.
The GP-100D supports modern industrial grinding solutions. It integrates with automation systems, including part loaders and conveyors. This streamlines workflows and reduces downtime. Moreover, these industrial grinding solutions help shops scale output without adding labor. The GP-100D enhances throughput while maintaining part consistency across shifts.
