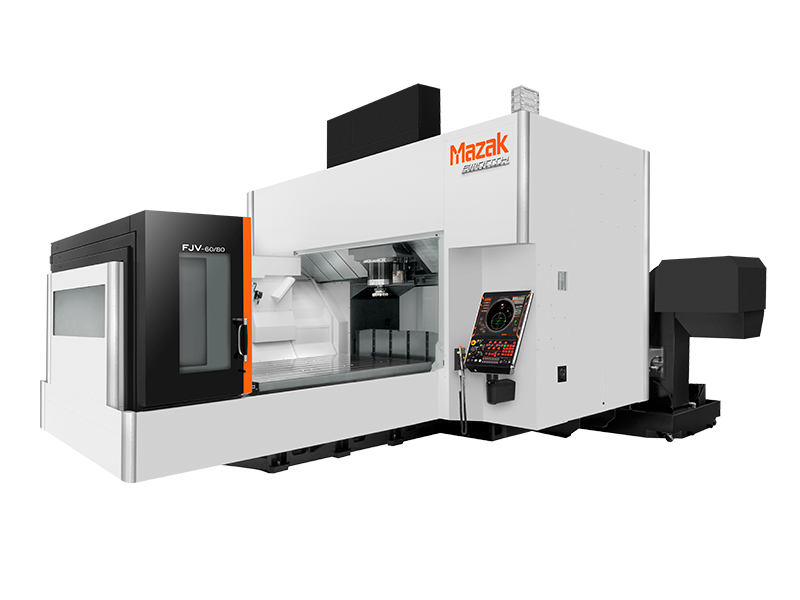

The FJV-60 is a heavy-duty double-column VMC designed to deliver exceptional rigidity, accuracy, and speed. With its wide work envelope, robust bridge-style frame, and high-speed spindle, it provides manufacturers with the platform they need to achieve repeatable precision and maximize production efficiency.
FJV-60 Features:
| Model | FJV 60/80, FJV 60/120, FJV 60/160 |
|---|---|
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Table size | 88.19 × 49.21, 118.11 × 49.21, 157.48 × 49.21 |
$1.00
Built for stability, the FJV-60’s double-column VMC construction minimizes vibration and thermal distortion for aggressive cutting. Featuring a 10,000 RPM spindle, this Mazak machining center delivers the perfect balance of speed and torque. As a result, it’s capable of cutting materials from aluminum to hardened steels. It also features smooth acceleration and thermal control systems to keep machining consistent over long production runs, and to improve surface finishes, and extend tool life.
The FJV-60 is powered by the Mazatrol SmoothG CNC control, which gives operators an intuitive, touchscreen interface for programming and job management. In addition, it offers conversational programming, 3D simulation, and real-time diagnostics to shorten setup times and keep production running smoothly. As a result, this intelligent control improves part quality, reduces idle time, and allows shops to handle complex programs.
For lights-out manufacturing, the FJV-60 supports automation with pallet changer systems and extended tool magazines. This configuration allows operators to load new parts while the machine is cutting, maximizing spindle utilization and reducing downtime for uninterrupted machining. Ideal for aerospace, automotive, and large industrial components, the FJV-60 provides the reliability and throughput required for high-volume production.
| Model | FJV 60/80, FJV 60/120, FJV 60/160 |
|---|---|
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Table size | 88.19 × 49.21, 118.11 × 49.21, 157.48 × 49.21 |
FJV 60/80
| Table | Table size | 88.19″ × 49.21″ |
|---|---|---|
| Distance between columns | 59.06″ | |
| Max. loading weight(equal distribution) | 8818 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | 14.96″ | |
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 78.74″ |
| Y-axis | 55.12″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.28″ | |
| Rapid traverse rate | X-axis | 1575 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 160.83″ × 271.45″ |
| Height | 137.8″ | |
| Machine weight | 57320 lbs |
FJV 60/120
| Table | Table size | 118.11″ × 49.21″ |
|---|---|---|
| Distance between columns | 59.06″ | |
| Max. loading weight(equal distribution) | 11023 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | 14.96″ | |
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 125.98″ |
| Y-axis | 55.12″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.28″ | |
| Rapid traverse rate | X-axis | 1260 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 160.83″ × 355.51″ |
| Height | 137.8″ | |
| Machine weight | 68340 lbs |
FJV 60/160
| Table | Table size | 157.48″ × 49.21″ |
|---|---|---|
| Distance between columns | 59.06″ | |
| Max. loading weight(equal distribution) | 11023 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | 14.96″ | |
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 165.35″ |
| Y-axis | 55.12″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.28″ | |
| Rapid traverse rate | X-axis | 866 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 160.83″ × 450.83″ |
| Height | 137.8″ | |
| Machine weight | 77160 lbs |
