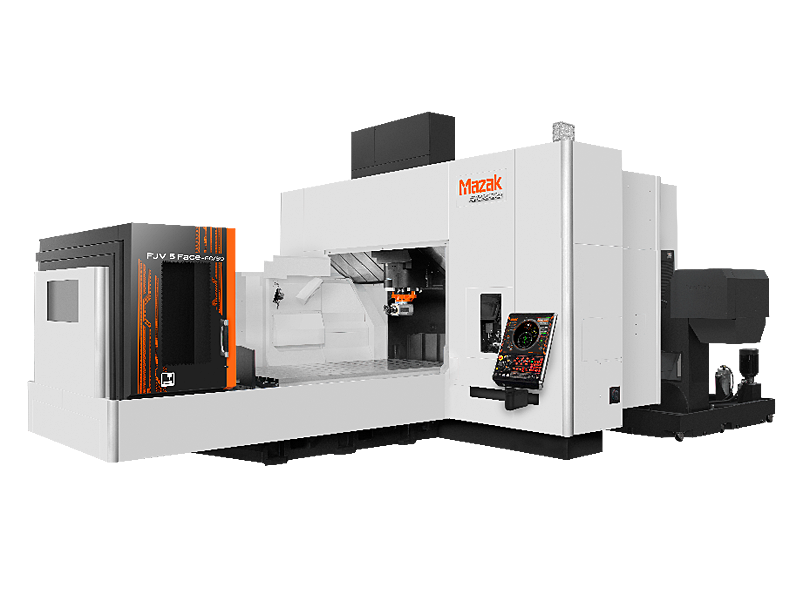

Featuring an automatic tool changer to streamline operations, this double-column vertical machining center enhances precision and productivity. In addition, it’s capable of machining all five faces of a workpiece in a single setup to reduce machining time compared to conventional processes. As a result, this machine is ideal for CNC machine shop engineers looking to enhance efficiency and throughput in their operations.
FJV 5 Face-60 Features:
| Model | FJV 5 Face 60/80, FJV 5 Face 60/120, FJV 5 Face 60/160 |
|---|---|
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Table size | 88.19 × 49.21, 118.11 × 49.21, 157.48 × 49.21 |
$1.00
Engineered to eliminate spindle overhang, the FJV 5 Face-60 provides a stable machining platform for complex, multi-surface parts. This structural rigidity ensures high-tolerance performance over extended production cycles. In addition, its ergonomic layout improves part loading and operator access, reducing fatigue and supporting greater throughput for busy CNC machine shop operations.
Designed to excel in precision machining, the FJV 5 Face-60 consistently delivers tight tolerances and excellent surface finishes. Its layout supports efficient handling of large workpieces, minimizing setup time and maximizing spindle utilization. As a result, manufacturers benefit from increased reliability, reduced downtime, and the ability to meet demanding production schedules.
This vertical machining center is equipped with Mazatrol controls to simplify programming and accelerate adjustments. In addition, operators can quickly adapt programs for complex part geometries, reduce programming time and increase shop efficiency. This ease of use makes it an ideal solution for high-mix production. The Mazak FJV 5 Face-60 was purpose built to keep modern manufacturing environments competitive in evolving industrial environments.
Compare to other Mazak Vertical Machines for Sale
| Model | FJV 5 Face 60/80, FJV 5 Face 60/120, FJV 5 Face 60/160 |
|---|---|
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Table size | 88.19 × 49.21, 118.11 × 49.21, 157.48 × 49.21 |
| Table | Table size | 88.19″ × 49.21″ |
|---|---|---|
| Distance between columns | 59.06″ | |
| Max. loading weight(equal distribution) | 8818 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | 14.96″ | |
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 78.74″ |
| Y-axis | 55.12″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.28″ | |
| Rapid traverse rate | X-axis | 1575 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 178.43″ × 271.46″ |
| Height | 137.8″ | |
| Machine weight | 59744 lbs |
| Table | Table size | 118.11″ × 49.21″ |
|---|---|---|
| Distance between columns | 59.06″ | |
| Max. loading weight(equal distribution) | 11023 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | 14.96″ | |
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 125.98″ |
| Y-axis | 55.12″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.28″ | |
| Rapid traverse rate | X-axis | 1260 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 178.43″ × 355.51″ |
| Height | 137.8″ | |
| Machine weight | 70767 lbs |
| Table | Table size | 157.48″ × 49.21″ |
|---|---|---|
| Distance between columns | 59.06″ | |
| Max. loading weight(equal distribution) | 11023 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | ||
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 165.35″ |
| Y-axis | 55.12″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.28″ | |
| Rapid traverse rate | X-axis | 886 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 178.43″ × 450.83″ |
| Height | 137.8″ | |
| Machine weight | 79586 lbs |
