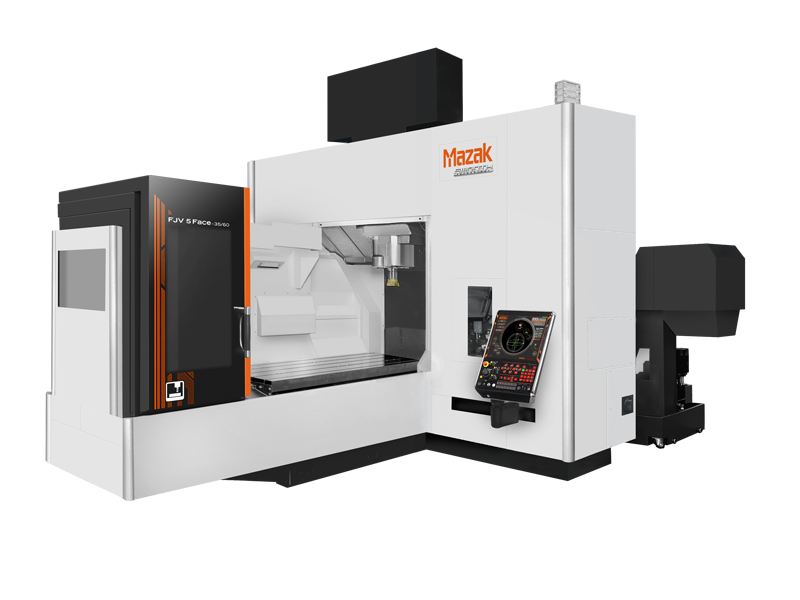

The FJV 5 Face-35 is a high-performance vertical double-column machining center built for precision, rigidity, and repeatability. Designed to eliminate spindle overhang, it delivers reliable accuracy on large, complex parts. Its heavy-duty structure supports extended production cycles, making it a trusted choice for aerospace, automotive, and general industrial applications.
FJV 5 Face-35 Features:
| Model | FJV 5 Face 35/60, FJV 5 Face 35/80, FJV 5 Face 35/120 |
|---|---|
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Table size | 68.5 × 29.53, 88.19 × 29.53, 127.56 × 29.53 |
$1.00
The FJV 5 Face-35’s vertical double-column machining construction provides exceptional rigidity. This allows it to reduce deflection and vibration under aggressive cutting conditions. In addition, this structural stability ensures tighter tolerances and better surface finishes on high-precision work. Its wide, accessible work area also supports large parts while giving operators better visibility and control throughout the machining process.
Manufacturing engineers can perform multiple operations in a single setup on this multi-surface machining center. By reducing fixture changes and part handling, it shortens cycle times while improving dimensional accuracy. In addition, its open layout and ergonomic design simplify oversized component loading for better efficiency and less fatigue. Combined with its rigid construction, the FJV 5 Face-35 is a powerful solution for shops that regularly machine intricate, multi-face geometries.
The FJV 5 Face-35 integrates with CNC tooling solutions, supporting everything from heavy roughing to fine finishing. Quick tool changes and advanced Mazak controls keep production running smoothly while maintaining consistent part quality. In addition, its automation compatibility allows shops to implement lights-out machining, boosting throughput and lowering labor costs—an advantage for manufacturers scaling production.
| Model | FJV 5 Face 35/60, FJV 5 Face 35/80, FJV 5 Face 35/120 |
|---|---|
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Table size | 68.5 × 29.53, 88.19 × 29.53, 127.56 × 29.53 |
FJV 5 Face-35/60
| Table | Table size | 68.5″ × 29.53″ |
|---|---|---|
| Distance between columns | 33.9″ | |
| Max. loading weight(equal distribution) | 5512 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | 14.96″ | |
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 59.06″ |
| Y-axis | 31.5″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.3″ | |
| Rapid traverse rate | X-axis | 1575 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 154.76″ × 226.06″ |
| Height | 137.8″ | |
| Machine weight | 41226 lbs |
FJV 5 Face- 35/80
| Table | Table size | 88.19″ × 29.53″ |
|---|---|---|
| Distance between columns | 33.9″ | |
| Max. loading weight(equal distribution) | 6614 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | 14.96″ | |
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 78.74″ |
| Y-axis | 31.5″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.3″ | |
| Rapid traverse rate | X-axis | 1575 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 154.76″ × 270.2″ |
| Height | 137.8″ | |
| Machine weight | 44533 lbs |
FJV 5 Face-35/120
| Table | Table size | 127.56″ × 29.53″ |
|---|---|---|
| Distance between columns | 33.9″ | |
| Max. loading weight(equal distribution) | 6614 lbs | |
| Spindle | Tool shank | CAT No.50 |
| Max. spindle speed | 10000 rpm | |
| Max. torque (40% ED) | 258 ft-lbs | |
| Max. torque (cont. rating) | 176 ft-lbs | |
| Spindle motor (40% ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 30 |
| Max. tool diameter | Φ4.92″ | |
| Max. tool diameter (without adjacent) | Φ8.27″ | |
| Max. tool length (from gauge line) | 14.96″ | |
| Max. tool weight | 44 lbs | |
| Travel | X-axis | 118.11″ |
| Y-axis | 31.5″ | |
| Z-axis | 25.98″ | |
| Distance from table top face to spindle end | 6.3″ to 32.3″ | |
| Rapid traverse rate | X-axis | 1260 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 11181 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 154.76″ × 366.73″ |
| Height | 137.8″ | |
| Machine weight | 53351 lbs |
