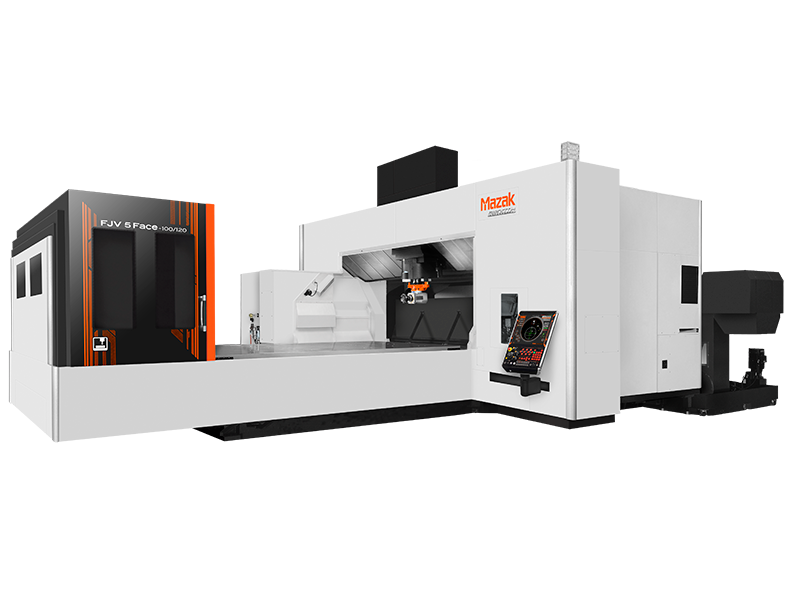

FJV 5 Face 100

The Mazak FJV 5 Face-100 vertical machining center is engineered with a double-column structure and an automatic tool changer. As a result, it’s a high-precision, high-productivity manufacturing solution. By machining all five faces of a workpiece in a single setup, it decreases machining time significantly compared to traditional, multiple-setup methods. For CNC machinists and shop owners, this means faster turnaround times on projects without sacrificing the quality of the final product.



FJV 5 Face 100

  • Units and functions that make 5-surface machining accessible as standard equipment, achieving process integration
  • Highly-rigidity double column construction for high-accuracy machining
  • High-accuracy built-in motor spindle for high-efficiency machining
  • Designed for high-efficiency in machining large workpieces, with a wide lineup that can handle long shaft workpieces
  • Equipped with touch screen CNC system MAZATROL SmoothG
Model

FJV 5 Face 100/120, FJV 5 Face 100/160
Tool shank

50
Max. spindle speed

10000
Table size

118.11 × 78.74, 157.48 × 78.74

$1.00

SKU N/A Categories: , Brand:
Description
Ergonomic Design for Complex Workpiece Handling

The FJV 5 Face-100 simplifies the loading and unloading of complex workpieces through a wide, open layout and accessible controls. Engineered with operators in mind, it improves efficiency in part setup and reduces operator strain during extended production runs. In addition, it allows shops to finish multiple surfaces in a single setup to minimize fixture changes and ensure consistent part quality.



Precision and Repeatability in a Vertical Machining Center

The Mazak FJV 5 Face-100 vertical CNC systems deliver reliable, repeatable accuracy across a wide variety of part geometries. For example, its rigid structure and high-speed spindle support aggressive roughing and fine finishing in a single cycle to maintain tight tolerances. This makes it an ideal solution for industries such as aerospace, automotive, and general industrial manufacturing.



Vertical CNC Systems That Support Growth

For CNC machine shops focused on scaling operations, the FJV 5 Face-100 offers an investment in both capability and capacity. Its automation compatibility allows for lights-out production, while the advanced control system streamlines programming and setup. This combination positions the FJV 5 Face-100 to grow with modern machine shops, supporting efficiency, quality, and profitability as production demands evolve.



Compare to other Mazak Vertical Machines for Sale

Additional Information
Model

FJV 5 Face 100/120, FJV 5 Face 100/160
Tool shank

50
Max. spindle speed

10000
Table size

118.11 × 78.74, 157.48 × 78.74
FJV 5 Face-100/120
Table Table size 118.11″ × 78.74″
Distance between columns 98.43″
Max. loading weight(equal distribution) 11023 lbs
Spindle Tool shank CAT No.50
Max. spindle speed 10000 rpm
Max. torque (40% ED) 258 ft-lbs
Max. torque (cont. rating) 176 ft-lbs
Spindle motor (40% ED) 37 kW (50 HP)
Spindle motor (cont. rating) 30 kW (40 HP)
Automatic tool changer Tool storage capacity 60
Max. tool diameter Φ4.92″
Max. tool diameter (without adjacent) Φ8.27″
Max. tool length (from gauge line) 14.96″
Max. tool weight 44 lbs
Travel X-axis 125.98″
Y-axis 96.46″
Z-axis 25.98″
Distance from table top face to spindle end 6.3″ to 32.28″
Rapid traverse rate X-axis 1181 IPM
Y-axis 1575 IPM
Z-axis 1181 IPM
Machine dimensions Width x Length (MAZATROL SmoothG) 225.9″ × 368.98″
Height 141.73″
Machine weight 100750 lbs
FJV 5 Face-100/160
Table Table size 157.48″ × 78.74″
Distance between columns 98.43″
Max. loading weight(equal distribution) 22046 lbs
Spindle Tool shank CAT No.50
Max. spindle speed 10000 rpm
Max. torque (40% ED) 258 ft-lbs
Max. torque (cont. rating) 176 ft-lbs
Spindle motor (40% ED) 37 kW (50 HP)
Spindle motor (cont. rating) 30 kW (40 HP)
Automatic tool changer Tool storage capacity 60
Max. tool diameter Φ4.92″
Max. tool diameter (without adjacent) Φ8.27″
Max. tool length (from gauge line) 14.96″
Max. tool weight 44 lbs
Travel X-axis 165.35″
Y-axis 96.46″
Z-axis 25.98″
Distance from table top face to spindle end 6.3″ to 32.28″
Rapid traverse rate X-axis 1181 IPM
Y-axis 1575 IPM
Z-axis 1181 IPM
Machine dimensions Width x Length (MAZATROL SmoothG) 225.91″ × 474.17″
Height 141.73″
Machine weight 103616 lbs
