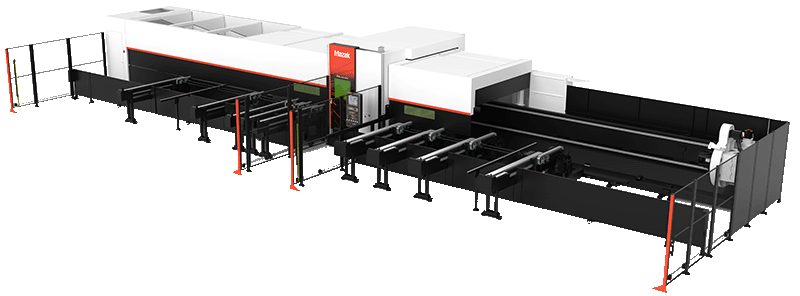

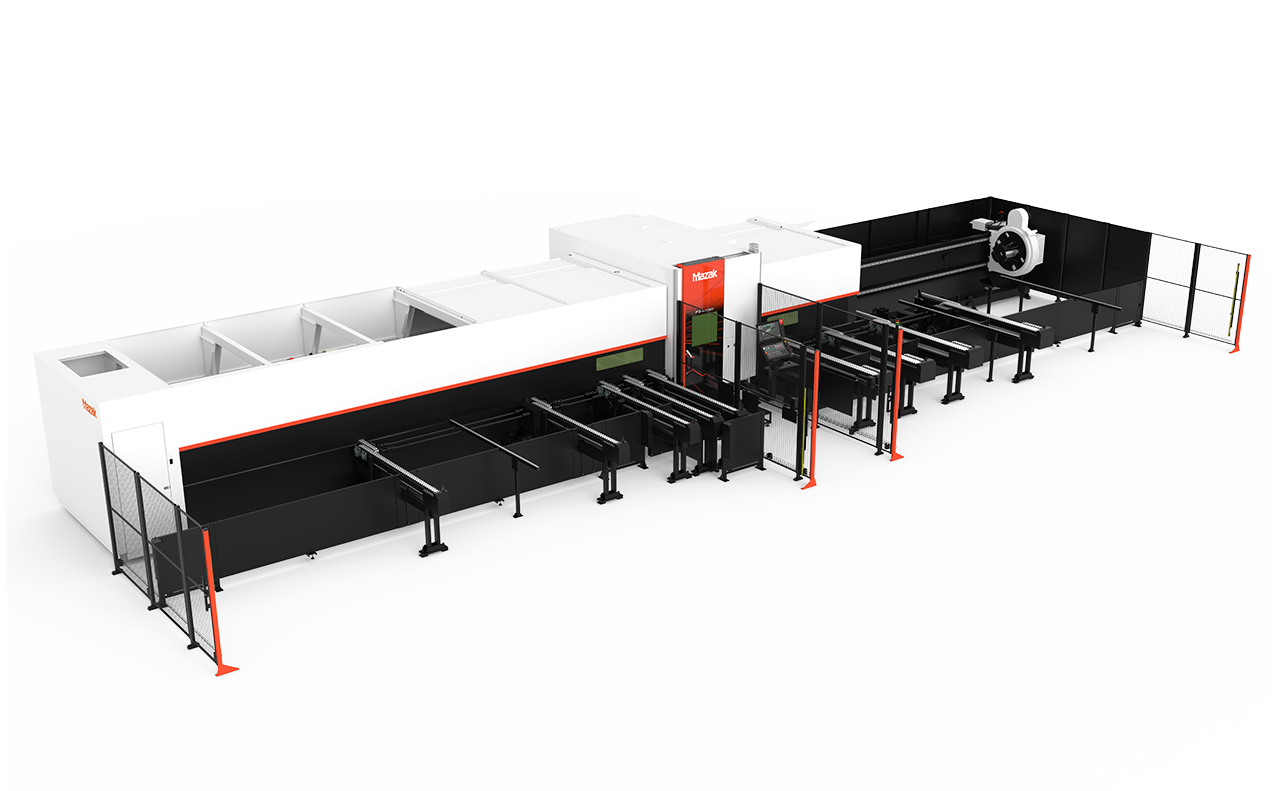

The Mazak FG-400 NEO is a next-generation multi-axis laser cutter engineered for pipe and structural processing. It combines 3D cutting capability, CNC control, and automation to deliver accurate results on pipes, beams, and heavy sections. Designed for manufacturing engineers focused on productivity, the FG-400 NEO reduces setups, eliminates secondary operations, and maintains tight tolerances in demanding production environments.
FG-400 NEO
The Mazak FG-400 NEO is a high-performance multi-axis laser cutter designed for complex pipe and structural applications. It provides full 3D cutting across pipes, beams, and heavy profiles, eliminating the need for multiple machines. With an automation-ready design and CNC precision, it shortens setup time, reduces labor, and improves overall throughput. For manufacturing engineers managing large-scale projects, the FG-400 NEO delivers accuracy, repeatability, and efficiency in demanding environments.
As a versatile pipe laser cutter, the FG-400 NEO processes round, square, and rectangular tubes with minimal setup changes. Its advanced clamping system holds long pipe stock securely, ensuring clean and accurate results. Because it integrates automated material handling, the system reduces manual input and allows rapid changeovers. This capability helps shops run high-mix production while maintaining consistent cut quality and cycle-time efficiency.
The FG-400 NEO also functions as a robust structural laser machine, purpose-built for large components such as I-beams, H-beams, and channel sections. Its laser cutting head delivers sharp edges and reduces heat distortion, making weld preparation more precise and assembly more efficient. By combining cutting, notching, and slotting in a single pass, it minimizes handling and eliminates secondary processes, giving engineers a streamlined path from raw stock to finished part.
At its core, the FG-400 NEO operates as a CNC pipe cutter with multi-axis control. It automatically feeds, rotates, and cuts pipe stock while adjusting in real time to material conditions. This precision control improves part accuracy, enhances repeatability, and ensures consistent performance across long production runs. Combined with automation features such as gantry loaders and pallet systems, the FG-400 NEO provides reliable productivity and reduces downtime in high-demand fabrication environments.
FG-400 NEO
| Specifications | Loader specifications | 236.2″ |
|---|---|---|
| Workpiece size | Workpiece shape | round, square, L beam, H beam, I beam, channel |
| Workpiece material | mild steel, stainless steel, copper, brass, aluminum | |
| Max. workpiece diameter (round pipe) | Φ0.79″ – Φ16″ | |
| Max. workpiece diameter (square pipe) | 0.79″ × 0.79″ – 12.01″ × 12.01″ | |
| Max. material length for loading | 243.31″ | |
| Min. material length for loading | 98.43″ | |
| Max. material length for unloading | 240.16″ | |
| Max. workpiece weight | 1323 lbs | |
| Max. workpiece weight (per 1 ft) | 67 lbs/ft | |
| Laser resonator | Laser power | 5.0 kW |
| CNC | Control method | semi-closed loop |
| Max. controlled axes | 32 | |
| Min. program increment | 0.0001″ | |
| Programming method | EIA / ISO | |
| Monitor | 15″ color LCD | |
| Machine size | Machine width × length | 708″ × 277″ |
| Machine height | 120″ | |
| Machine weight | 79365 lbs |
* option
