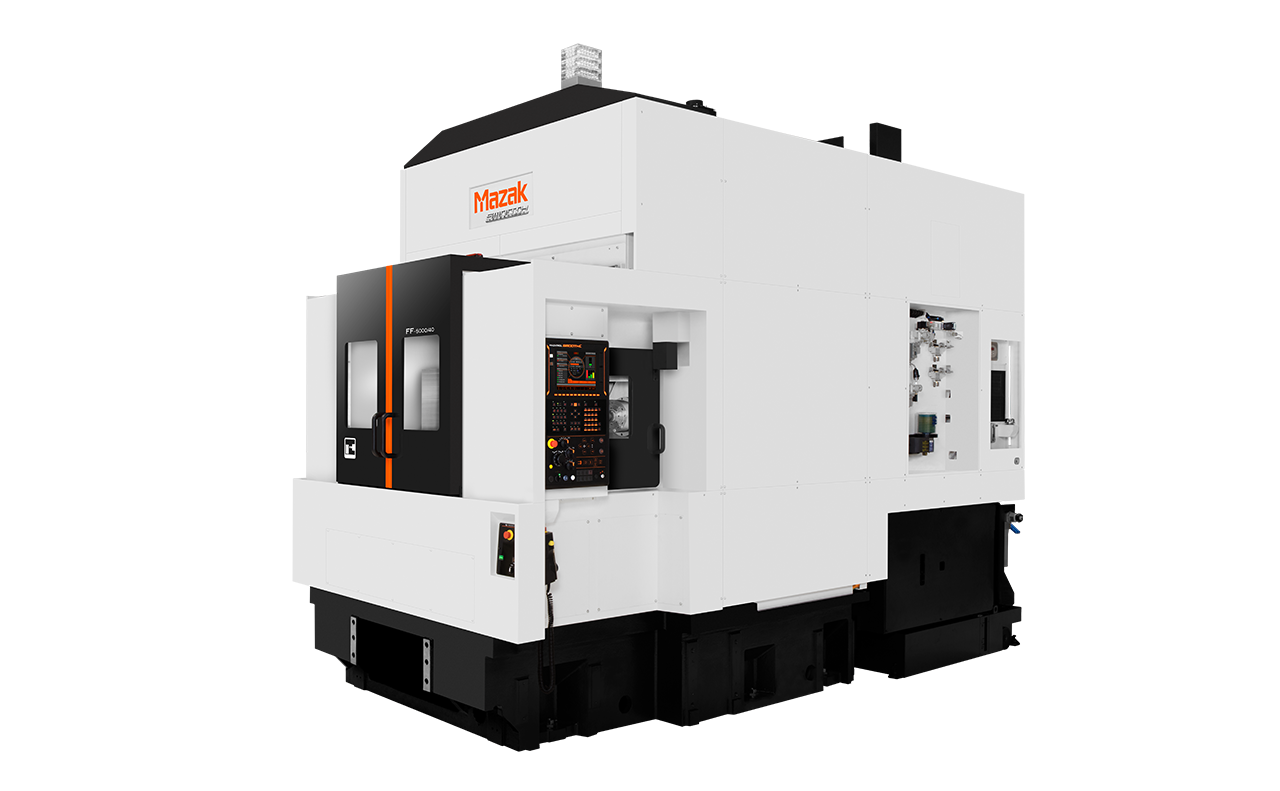

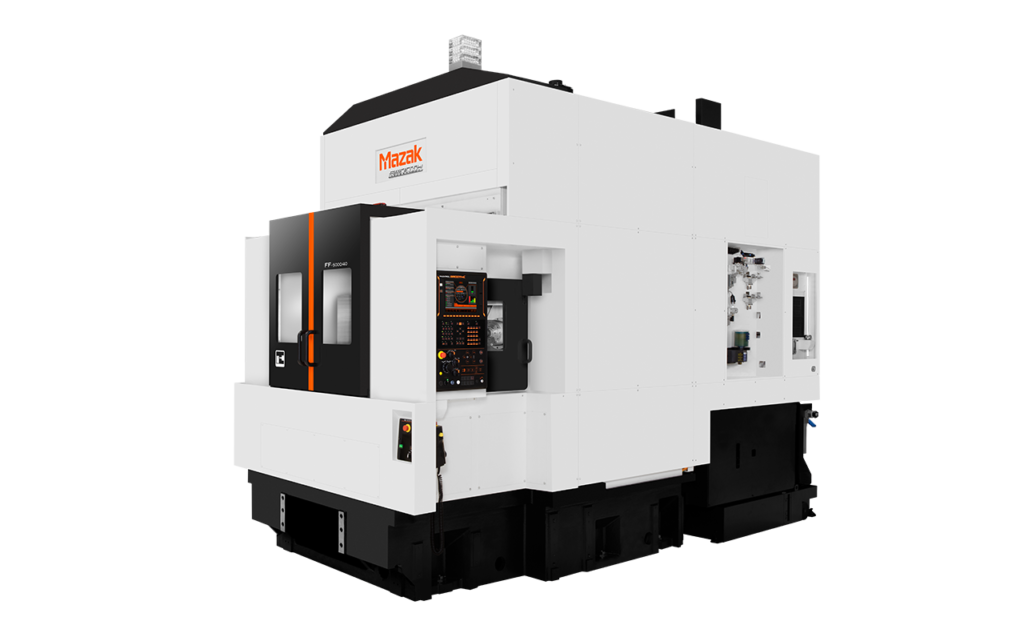

Mazak FF-5000 horizontal machining center with built-in spindle for high-speed CNC machining solutions

FF-5000

The Mazak FF-5000 is a compact horizontal machining center engineered for speed, precision, and high-volume production, making it ideal for automated manufacturing environments.





FF- 5000 Features:

  • High cutting capacity and fast operation for high productivity
  • Machine structure that facilitates the construction of a mass production parts machining lines
  • Space-saving design for mass production parts machining
  • High reliability and maintainability
Model

FF-5000/40, FF-5000/50
Pallet size

19.69 × 19.69
Tool shank

40, 50
Max. spindle speed

12000
Max. workpiece size

28.35 × 34.25

$1.00

SKU N/A Categories: , Brand:
Description
Compact Power for High-Volume Manufacturing

The Mazak FF-5000 is a horizontal machining center designed for speed, precision, and efficiency. Its compact footprint makes it ideal for space-conscious, high-output environments. With a high-speed spindle and rigid construction, the FF-5000 delivers consistent accuracy at high RPMs, supporting demanding industrial machining applications in automotive, industrial, and general part production.



Reliable Performance in High-Output Environments

The FF-5000 focuses on repeatability, reduced cycle times, and seamless integration with automation systems. In addition, its thermally stable structure minimizes dimensional drift during extended runs, while simplified maintenance and quick setup reduce downtime. Whether used as a standalone unit or in a fully automated cell, it provides a scalable solution for high-volume machining.



Automated Production for Industrial Machining Applications

The FF-5000 excels in automated production environments, enabling continuous, unattended operation. Loader robots manage part transfer with precision, minimizing manual handling and boosting line efficiency. This integration-ready design ensures smooth communication with automation systems, helping manufacturers optimize floor space, streamline workflows, and maintain consistent output.

Additional Information
Model

FF-5000/40, FF-5000/50
Pallet size

19.69 × 19.69
Tool shank

40, 50
Max. spindle speed

12000
Max. workpiece size

28.35 × 34.25
FF-5000/40
Pallet Pallet size 20″ × 20″
Max. workpiece size Φ28″ × 28″
Max. load (evenly distributed) 1102 lbs
Min. indexing angle 0.001°
Spindle Tool shank CAT No.40
Max. spindle speed 12000 rpm
Max. torque (40%ED) 60 Nï½¥m
Max. torque (cont. rating) 44 Nï½¥m
Spindle motor (40%ED) 18.5 kW (25 HP)
Spindle motor (cont. rating) 15 kW (20 HP)
Automatic tool changer Tool storage capacity 20
Max. tool diameter Φ4″
Max. tool diameter (without adjacent) Φ6″
Max. tool length (from gauge line) 14″
Max. tool weight 22 lbs
Travel X-axis 26″
Y-axis 26″
Z- axis 22″
Distance between pallet top to spindle center 2″ to 28″
Rapid traverse rate X-axis 2441 IPM
Y-axis 2441 IPM
Z- axis 2441 IPM
Machine dimensions Width x Length (MAZATROL SmoothC) 69″ × 157″
Height 128″
Machine weight 22002 lbs

FF-5000/50

Pallet Pallet size 20″ × 20″
Max. workpiece size Φ28″ × 28″
Max. load (evenly distributed) 1102 lbs
Min. indexing angle 0.001°
Spindle Tool shank CAT No.50
Max. spindle speed 10000 rpm
Max. torque (40%ED) 159.3 Nï½¥m
Max. torque (cont. rating) 108.4 Nï½¥m
Spindle motor (40%ED) 30 kW (40 HP)
Spindle motor (cont. rating) 22 kW (30 HP)
Automatic tool changer Tool storage capacity 20
Max. tool diameter Φ4″
Max. tool diameter (without adjacent) Φ6″
Max. tool length (from gauge line) 14″
Max. tool weight 22 lbs
Travel X-axis 26″
Y-axis 26″
Z- axis 22″
Distance between pallet top to spindle center 2″ to 28″
Rapid traverse rate X-axis 2441 IPM
Y-axis 2441 IPM
Z- axis 2441 IPM
Machine dimensions Width x Length (MAZATROL SmoothC) 69″ × 157″
Height 131″
Machine weight 22487 lbs
