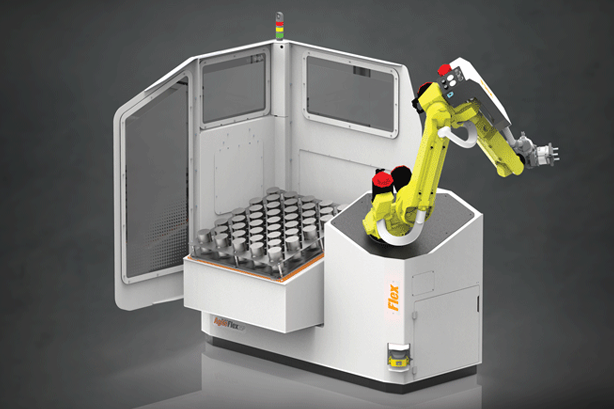

The Agile Flex 35P CNC Machine Tool Loading System is an affordable system for heavier parts and bigger machines.
General
| Agile control software | Standard |
| Included standard nest plates (double layer) | 1 |
| Additional nest plates | Option |
| Power supply (KVA) | 3 |
| Pneumatic pressure (bar) | 6 |
Robot
| Fanuc M20 iA35M robot (35kg payload) | Standard |
| Double 3-jaw gripper | Standard |
| Gripper pressure control | Standard |
Capacities
| Workpiece diameter (min/max) | 1″ – 6″ / 25mm – 150mm |
| Workpiece length | >12″ />300mm (application dependant) |
| Workpiece weight – double gripping (max) | 17.5lbs / 8kg |
| Weight capacity (max) | 500 lbs / 250kg |
| Standard nest plate capacity $0.75″ – 04″ / ø20mm – Ø100mm (pieces) | 32 |
| Standard nest plate capacity 0.75″ – 2.5″ / Ø20mm – Ø63mm (pieces) | 72 |
| Standard nest plate capacity 0.75″ – 01.375″ / Ø20mm – Ø35mm (pieces) | 179 |
Safety
| Floor scanner | Standard |
| Integrated enclosure | Standard |
| Safety fence | Option |
The Agile Flex 35P is a fully integrated CNC pallet loader engineered to increase spindle utilization and reduce manual labor in precision manufacturing environments. Designed for seamless machine tool automation, it combines efficient part handling with fast pallet changeovers using a robust Fanuc robot loader. As a result, facilities benefit from higher throughput, improved scheduling, and reduced operator intervention.
At the core of the Flex 35P is an industrial-grade robot loader, equipped with dual grippers for efficient pallet handling. This robotic machine loading system ensures repeatable, accurate placement while eliminating manual loading variability. According to Agile Robotics, the unit offers plug-and-play CNC integration and requires no robot programming. Operators can quickly deploy the system across existing machine tools with minimal disruption.
The automated pallet system within the Agile Flex 35P supports high-mix, low-volume, and batch manufacturing with ease. Each pallet accommodates a broad range of part sizes, including complex or heavy components. This high-capacity pallet loader allows uninterrupted machining during changeovers and off-shift hours. Its modular design also enables future pallet expansions, aligning with growth in production demands.
Despite its compact footprint, the Flex 35P delivers scalable automation without compromising floor space. As a CNC pallet loader optimized for lean manufacturing, it integrates easily into new or existing cells. Additionally, the system’s automated pallet system improves workflow efficiency while maintaining high accuracy and uptime.
The Agile Flex 35P delivers a proven combination of Fanuc robot loader, robotic machine loading, and modular machine tool automation. Its reliability, ease of integration, and long-term scalability make it an ideal solution for precision manufacturers seeking a hands-free, high-performance system. When uptime and repeatability are critical, this high-capacity pallet loader delivers measurable ROI.
