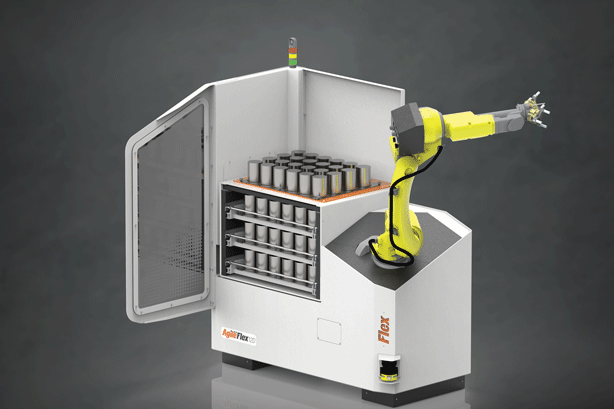

The Agile Flex 12D CNC Machine Tool Loading System is a multi-layer drawer system that increases overall capacity and unmanned run time.
General
| Agile control software | Standard |
| Number of drawers (standard) | 3 |
| Number of drawers (max) | 3 |
| Included nest plates | 1 per drawer |
| Additional nest plates | Option |
| Drawer-mount pallet | Option |
| Power supply (KVA) | 2 |
| Pneumatic pressure (bar) | 6 |
Robot
| Fanuc M10 iD12 robot (12kg payload) | Standard |
| Double 3-jaw gripper | Standard |
| Gripper pressure control | Standard |
Capacities
| Workpiece diameter (min/max) | 1″ – 4″ / 25mm – 100mm |
| Workpiece length – 3 drawers (standard) (min/max) | 0.4″ – 5″ / 10mm – 125mm |
| Workpiece length – optional drawer-mount pallet (max) | >12” | >300mm (application dependant) |
| Workpiece weight – double gripping (max) | 9lbs / 4kg |
| Weight capacity – drawer (max) | 180lbs / 80kg |
| Weight capacity – optional drawer-mount pallet (max) | 500lbs / 220kg |
| Drawer/Pallet capacity 01″ / Ø25mm (pieces) | 108 |
| Drawer/Pallet capacity ø2″ / ø50mm (pieces) | 48 |
| Drawer/Pallet capacity ø3″ / $75mm (pieces) | 30 |
| Drawer/Pallet capacity ø4″ / Ø100mm (pieces) | 20 |
Safety
| Floor scanner | Standard |
| Integrated enclosure | Standard |
| Safety fence | Option |
The Agile Flex 12D CNC machine loading system streamlines unattended production with its CNC machine loading system design. Featuring three durable drawers, each holding up to 108 small parts, this compact loading system enhances output while saving floor space. According to Agile Robotic Systems, the Agile Flex 12D “rapidly deploys on any CNC machine” and includes flexible CNC tool loading capabilities through its standard nest plates. Moreover, its pallet changer CNC machine‑style drawer design ensures smooth part transitions and efficient staging for lights-out machining.
The Agile Flex 12D’s automated drawer system transforms conventional loading into a seamless workflow for CNC operators. With each drawer acting like a mini pallet changer CNC machine, operators can load new parts while the system runs, ensuring no cycle time is wasted. On top of that, its cabinet-size compact loading system neatly fits next to any machine without obstructing movement. Transitioning between drawers is intuitive, with Agile Go cell controller— requiring “no robot programming knowledge” —which simplifies event sequence setup for robotic loading solution.
With its CNC tool loading integration, the Flex 12D supports automatic changing of tools along with parts. In fact, CNC tool loading takes place without operator assistance, freeing machinists to program, inspect, or monitor other jobs. The robotic loading solution ensures both tools and parts engage seamlessly, improving consistency and reducing error. Furthermore, the compact loading system employs standard Fanuc robots with double‑jaw grippers, allowing end‑users to benefit from turnkey CNC machine loading system integration.
This robotic loading solution leverages the Fanuc M‑10iD/12 for reliable CNC machine loading, while its double‑grip enables up to 2‑part handling per cycle. Plus, its automated drawer system supports varying part sizes—from 1″ to 4″—to meet job‑shop flexibility needs. The agile architecture ensures shops can start running production quickly, with drawer capacities that allow extended, unmanned cycles.
Agile designed the Flex 12D as a compact loading system that reduces setup time, increases unattended runtime, and fits in tight spaces. Transitioning parts from drawer to machine is fast, enabling high-volume runs without operator intervention. The CNC machine loading system interface is intuitive, responsive, and compatible with industry‑standard controls.
With its blend of CNC machine loading system, automated drawer system, CNC tool loading, robotic loading solution, and compact loading system, the Agile Flex 12D delivers a holistic, efficient workflow. As Agile’s site notes, this next‑generation loader “increases overall capacity and unmanned run time.” For manufacturers aiming to keep spindles turning and labor costs down, the Agile Flex 12D offers a powerful, space‑saving, and scalable solution.
