| Model | μ-8800 |
|---|---|
| Pallet size | 31.5 × 31.5 |
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Max. workpiece size | 57.09 × 57.09 |
$1.00

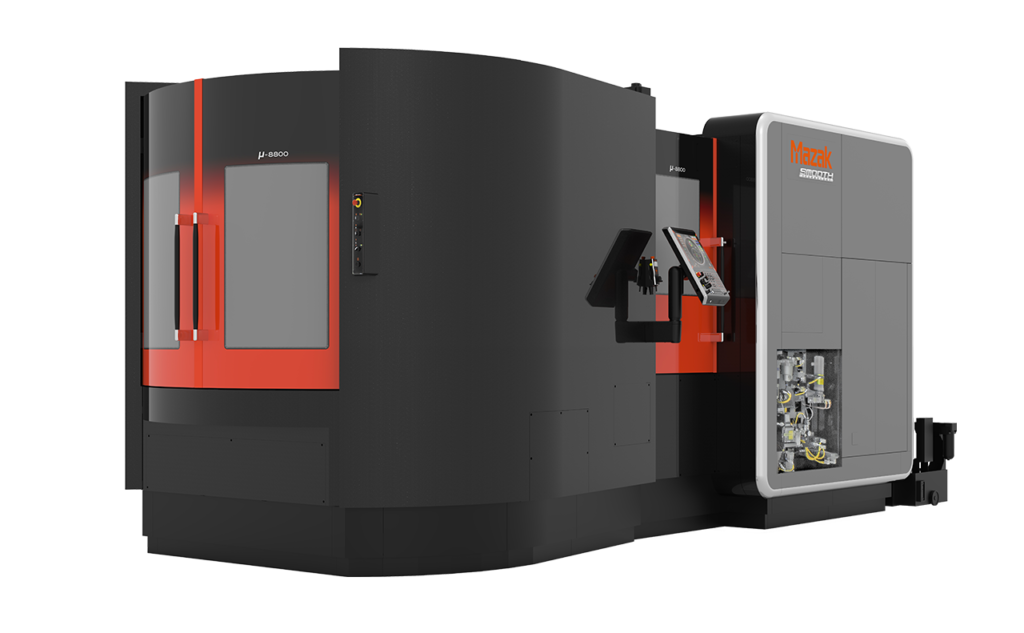

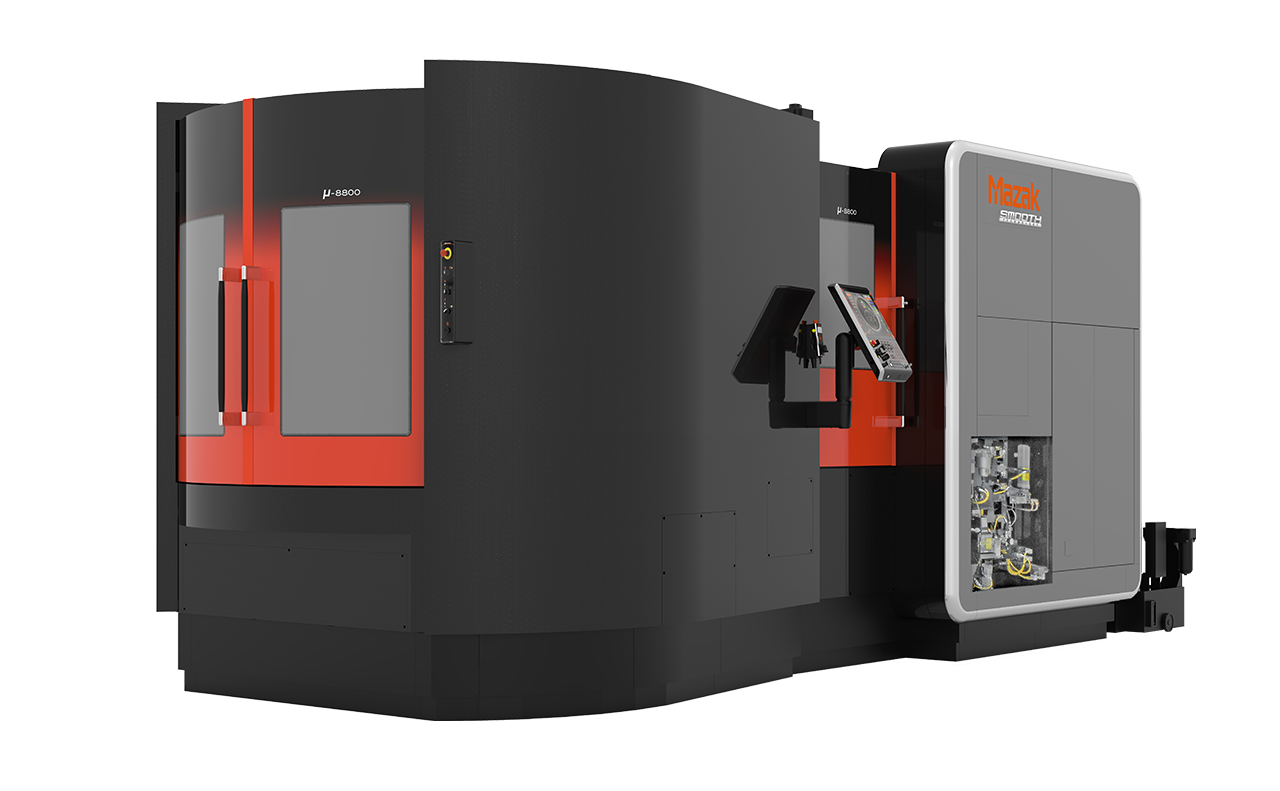

The Mazak μ-8800 is a next-generation horizontal machining center built for precision-driven, high-volume manufacturing. Its advanced spindle performance, high-speed cutting capability, and rigid construction deliver consistent results for complex, heavy-duty components. Designed for industrial machining applications, it’s ideal for aerospace, energy, and heavy equipment production where large workpieces must meet tight tolerances.
The μ-8800’s robust structure provides exceptional thermal control and vibration damping. These features ensure long-term dimensional accuracy and repeatability, even during extended runs. In addition, its optimized design supports both roughing and finishing, producing superior surface finishes while maintaining productivity.
Engineered for modern manufacturing, the μ-8800 integrates seamlessly with automation solutions to maximize uptime. Its intelligent CNC interface and advanced tooling systems shorten setup times, reduce operator intervention, and increase output across diverse production runs. This makes it a future-ready investment for shops focused on efficiency and scalable growth.
| Model | μ-8800 |
|---|---|
| Pallet size | 31.5 × 31.5 |
| Tool shank | 50 |
| Max. spindle speed | 10000 |
| Max. workpiece size | 57.09 × 57.09 |
| Spindle | Tool shank | CAT No.50 |
|---|---|---|
| Max. spindle speed | 10000 rpm | |
| Max. torque (30 min. rating) | 350 N･m | |
| Max. torque (cont. rating) | 239 N･m | |
| Spindle motor (30 min. rating) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Automatic tool changer | Tool storage capacity | 60 |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent) | Φ10″ | |
| Max. tool length (from gauge line) | 25″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 55″ |
| Y-axis | 47″ | |
| Z- axis | 52″ | |
| Distance between pallet top to spindle center | 4″ to 51″ | |
| Rapid traverse rate | X-axis | 2362 IPM |
| Y-axis | 2362 IPM | |
| Z- axis | 2362 IPM | |
| Machine dimensions | Width x Length (MAZATROL SmoothG) | 170″ × 406″ |
| Height | 147″ | |
| Machine weight | 66000 lbs |
