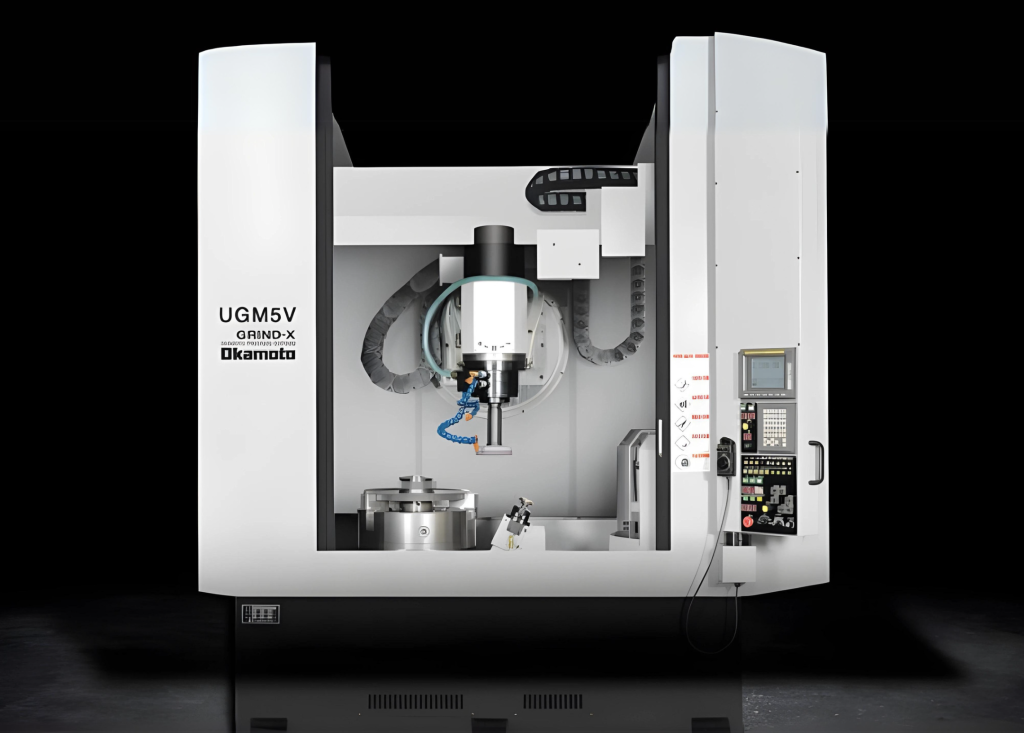

UGM-5V CNC

The UGM-5V Universal Grinder by Okamoto is ideal for high-precision grinding on large components, making it an unparalleled choice for industries requiring accuracy and efficiency. The robust design and construction, paired with a powerful spindle motor, makes it easy to process large, tough-to-grind parts, setting a new standard for industrial internal grinding machines.

Features:

Angular, Internal, Cylindrical and Shoulder Grinding capability in a single set-up
Superb design and construction delivers extreme roundness accuracies of 0.9 micrometers
Single workpiece chucking optimizes straightness and cylindricity accuracies
Compact design saves valuable floor space
Standard rotary dresser
Automatic wheelhead swivel standard
Automatic Wheel Changer available

UGM-5V Specifications

Ground: 2.75” ~ 19.7”
Maximum Grinding Stroke: 17.75”
Work Rotation Speed: 10 ~ 500 rpm
Wheel Spindle Speed: 500 ~ 8,000 rpm
Grinding Spindle: 15 hp
Floor Space (L x W x H): 94” x 99” x 111”
Weight: 15,435 lbs

Share on:

Description

The UGM-5V CNC offers multifaceted grinding capability, including Angular, Internal, Cylindrical, and Shoulder Grinding within a single setup. This versatility, combined with an automatic tool changer, boosts grinding productivity and flexibility. As a result, it’s a standout in Okamoto High Performance Internal Grinders. In addition, the machine’s standard rotary dresser and automatic wheelhead swivel underscore its advanced functionality.

The Okamoto UGM-5V CNC internal grinder was designed for extreme roundness accuracies of 0.9 micrometers. Single workpiece chucking optimizes straightness and cylindricity, ensuring that each component meets stringent quality and precision standards. As a result, this industrial internal grinding machine is capable of meeting the dynamic needs of today’s advanced manufacturing landscapes. Despite its extensive capabilities, the UGM-5V CNC has a compact design to conserve floor space without compromising on performance. This design philosophy reflects Okamoto’s understanding on the importance of optimizing workshop real estate, providing a high-efficiency solution that fits seamlessly into any manufacturing environment.

The UGM-5V Universal Grinder from Okamoto redefines the possibilities of internal grinding, offering a comprehensive solution for high-precision, high-performance grinding needs. Its combination of angular grinding capability, accuracy, in a compact footprint makes it an essential addition to any CNC shop dedicated to leading-edge metalworking.
