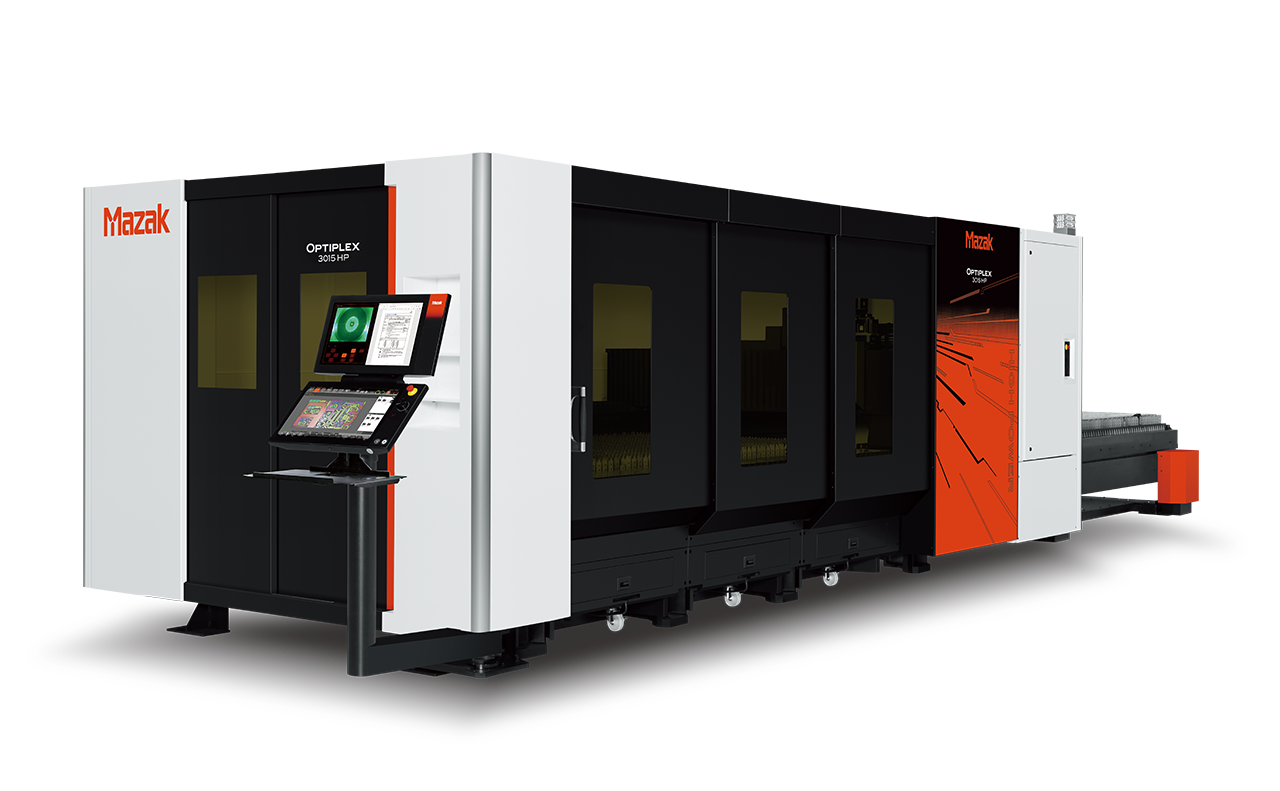

The Mazak Optiplex HP is a fiber laser-driven laser processing machine crafted for heavy-duty fabrication. It handles thick plate cutting with speed and stability, supporting materials up to 2 inches thick. As part of Mazak’s fiber laser line, it combines high output, precision, and workflow integration. With features like SmoothCUT oscillators, automatic nesting, and full automation support, it fits seamlessly into modern, high-throughput production settings.
Optiplex HP Features:
The Optiplex HP uses Mazak’s fiber laser technology with GRAND CUT, which enhances stability and surface quality during thick plate cutting. It raises molten temperature for better edge performance and uses the SmoothCUT laser oscillator to maintain stable beam quality across thickness variations. As a result, it improves perpendicularity, reduces defects, and supports consistent yields on demanding jobs.
Equipped with the MAZATROL SmoothLx CNC system for laser processing machines, the Optiplex HP features a dual 21.5″ touchscreen interface. It offers graphical nesting, assist functions, and intuitive operation for fast setup. In addition, integrated camera nesting and nozzle-center monitoring streamline workflow. These controls make it easier to implement laser machining automation solutions and reduce operator load.
The Optiplex HP is enclosed for cleaner operation and improved safety. Sliding front and side doors permit broad access but preserve floor space. The system integrates material handling automation—from sheet loading to sorting—for lights-out production. Automation support includes sheet changers and peripheral cells, enabling continuous processing with minimal manual handling.
Optiplex 3015 HP
| Workpiece size | Max. worksheet size | 60″ × 120″ |
|---|---|---|
| Laser resonator | Laser power | 20.0kW / 30.0kW |
| Stroke | X-axis | 122″ |
| Y-axis | 62″ | |
| Z-axis | 5″ | |
| Rapid traverse rate | X-axis | 4724 IPM |
| Y-axis | 4724 IPM | |
| Z-axis | 2362 IPM | |
| CNC system | Model | MAZATROL SmoothLx |
| Control method | semi-closed loop | |
| Programming method | EIA / ISO | |
| Monitor | 21.5″ color LCD | |
| Machine size | Width × Length | 114″ × 386″ |
| Height | 92″ |
Optiplex 4220 HP
| Workpiece size | Max. worksheet size | 80″ × 162″ |
|---|---|---|
| Laser resonator | Laser power | 20.0kW / 30.0kW |
| Stroke | X-axis | 165″ |
| Y-axis | 82″ | |
| Z-axis | 5″ | |
| Rapid traverse rate | X-axis | 4724 IPM |
| Y-axis | 4724 IPM | |
| Z-axis | 2362 IPM | |
| CNC system | Model | MAZATROL SmoothLx |
| Control method | semi-closed loop | |
| Programming method | EIA / ISO | |
| Monitor | 21.5″ color LCD | |
| Machine size | Width × Length | 136″ × 499″ |
| Height | 91″ |
