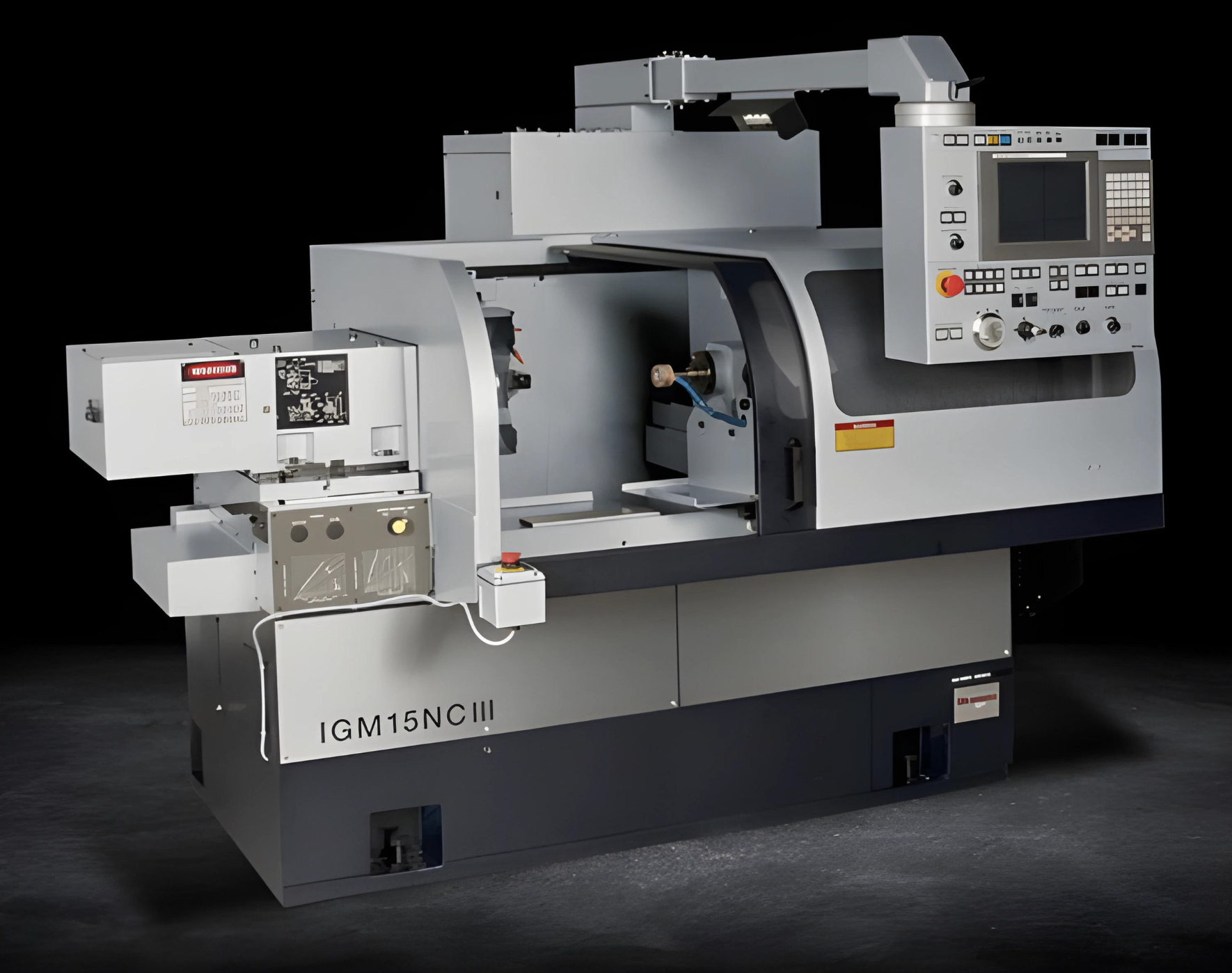

IGM-15NCIII

The IGM-15NCIII is the latest innovation in advanced CNC I.D. Okamoto internal grinding technology. Designed with rigid construction and premium components, this machine guarantees sustained peak accuracy, and an extended operational lifespan, making it a vital asset in any precision-focused manufacturing setting.

Features:

New Fanuc OiTD Control
Touch Screen functionality combined with conversational input software.
Rigid construction.
Versatile grinding capability – Straight, Taper, Faces & Multi-Step
Grind I.Ds, O.Ds and Faces in a single chucking.
AC driven table with minimum feed increments of 0.00001″.
Minimum infeed increments as fine as 0.00001″ diameter.
High-performance wheelhead with 3 programmable speeds.
Rigid workhead with 100 to 850rpm speed.
Interrupt function enable in-process dressing in auto grinding cycle.

IGM-15NCIII Specifications

Internal Diameter to be Ground: 0.24″ ~ 6″/8″
Maximum Grinding Stroke: 5″
Swing over table: 24″
Workhead Spindle Speed: 100 ~ 850 rpm
Grinding Spindle: 5 hp
Floor Space (W x D x H): 100″ x 89″ x 67″
Weight: 5,072 lbs

Share on:

Description

The Okamoto IGM-15NCIII is equipped with a new touch screen CNC system to combine powerful control capabilities, allowing operators to effortlessly navigate and adjust settings to ensure optimal performance across a wide range of grinding applications. The IGM-15NCIII excels in versatile grinding, offering the ability to precisely grind straight, taper, and multi-step I.D.s, O.D.s, and faces in a single chucking. This eliminates the need for multiple setups and re-chuckings, reducing cycle times and enhancing overall productivity. With this internal grinding machine’s robust design, cutting-edge control technology, and versatile grinding capabilities, it’s ideal for multiple applications. Especially the automotive, aerospace, or any other industry requiring precise internal dimensions and surface quality.
