The double-wheel head design allows two different surfaces to be ground in one setup for continuous operation on large and small parts. In addition, the simultaneous two-diameter grinding and synchronized driving work head reduce cycle times and maintain high part accuracy.
Metric
| Specifications | Units | |
|---|---|---|
| Swing Over Table | mm | 300 |
| Distance Between Centers | mm | 250, 400, 600 |
| Weight Capacity | kg | 150 |
| Machine Weight | kg | 7500 / 9000 / 11000 |
Standard
| Specifications | Units | |
|---|---|---|
| Swing Over Table | inch | 11.81 |
| Distance Between Centers | inch | 9.84 / 15.75 / 23.63 |
| Weight Capacity | lbs | 330.69 |
| Machine Weight | Ibs | 16534.67 / 19841.6 / 24250.85 |

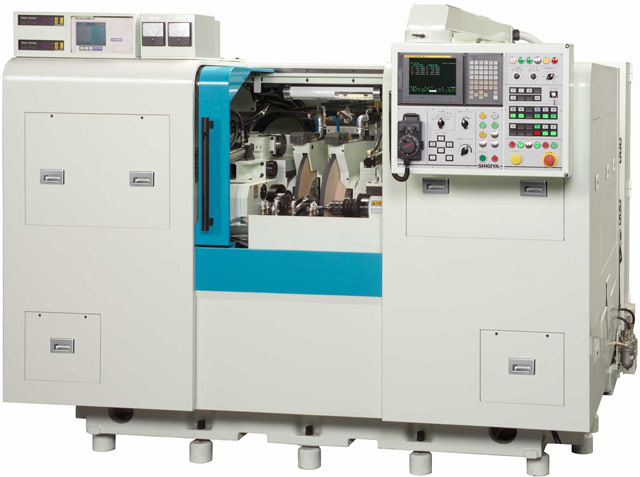

The Shigiya GNW-30 is a 2-head CNC grinder designed to enhance productivity in manufacturing environments. Its double-head cylindrical grinder configuration allows for simultaneous two-diameter grinding, effectively reducing cycle times and improving throughput. With synchronized driving workheads, the GNW-30 ensures precise and consistent results across various workpieces. This compact CNC grinder is suitable for both small and large production runs, offering flexibility and efficiency in one machine.
Equipped with dual wheelheads, the GNW-30 performs simultaneous two-diameter grinding, allowing two different surfaces to be ground in a single setup. This capability significantly reduces the need for multiple machines or setups, streamlining the production process. The synchronized driving workheads maintain high part accuracy, ensuring that each component meets stringent quality standards. This feature is particularly beneficial for applications requiring tight tolerances and consistent finishes.
Despite its robust capabilities, the GNW-30 maintains a compact footprint, making it an ideal choice for facilities with limited space. Its design does not compromise on performance; the machine delivers high-precision grinding suitable for a variety of applications. The compact CNC grinder’s efficiency and precision make it a valuable asset in industries such as automotive, aerospace, and general manufacturing.
Swing Over Table: 300 mm (11.81 inches)
Distance Between Centers: 250, 400, 600 mm (9.84, 15.75, 23.63 inches)
Weight Capacity: 150 kg (330.69 lbs)
Machine Weight: 7,500 / 9,000 / 11,000 kg (16,534.67 / 19,841.6 / 24,250.85 lbs)
These specifications highlight the GNW-30’s capability to handle a range of workpiece sizes and weights, further emphasizing its versatility in various manufacturing scenarios.
